SHO-ME Lights and Sirens

Micro-Lite LED Lights

Models 11.9000 / 11.9010 / 11.9200 / 11.9210

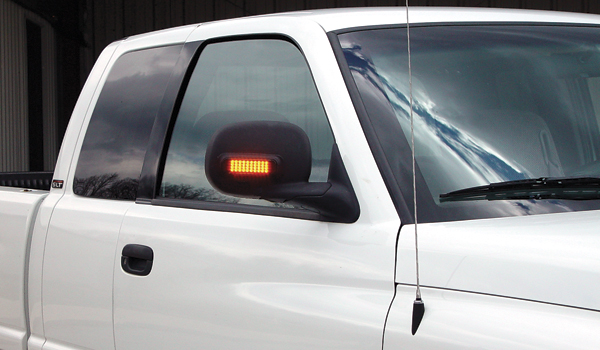

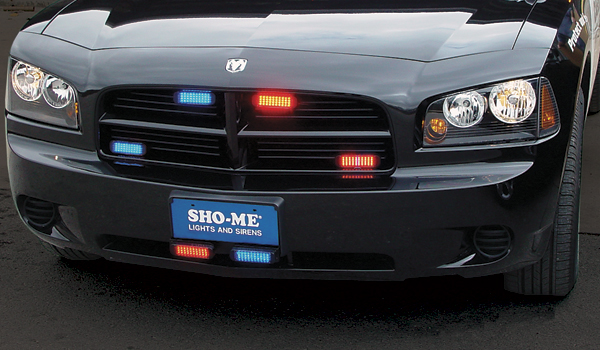

  • Compact lights mount on dash, deck, grille, trunk and mirrors.

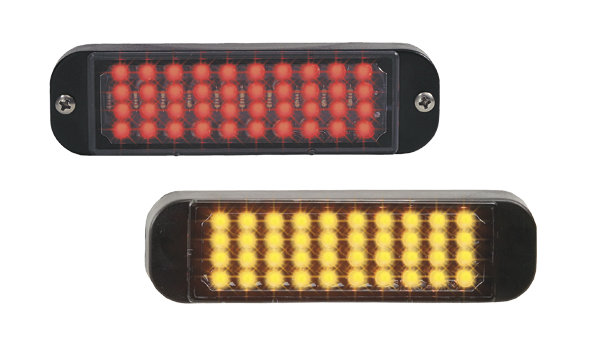

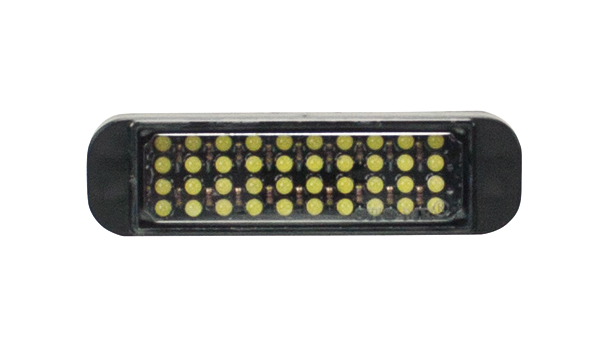

  • 40 high-intensity LEDs in each light.
  • Solid or split LED arrays.
  • Models 11.9000 and 11.9010 in amber and red are SAE J595 Class 1 certified.

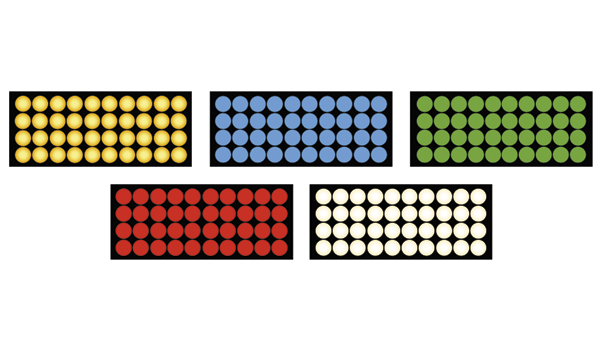

  • LEDs are available in amber, blue, green, red and white.
  • Black ABS plastic or silver cast aluminum housings.
  • Clear lens cover protects LEDs from dust and debris.
  • Knock-out holes for flush or bail mounting.
  • Available individually or in two- or four-head kits.

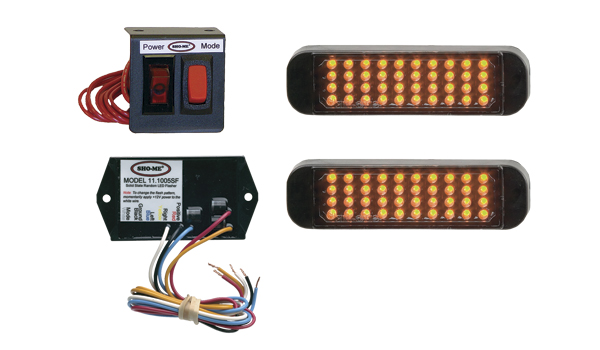

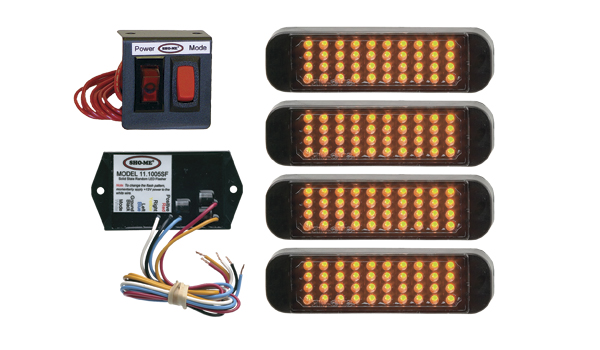

  • Kits include (2) or (4) Micro-Lites in your choice of solid or split array, LED color and housing color; (1) remote switch and (1) external LED flasher.
  • Each Micro-Lite comes with a bail bracket, gasket, mounting screws and 18" power cord.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 0.5 amps max per light

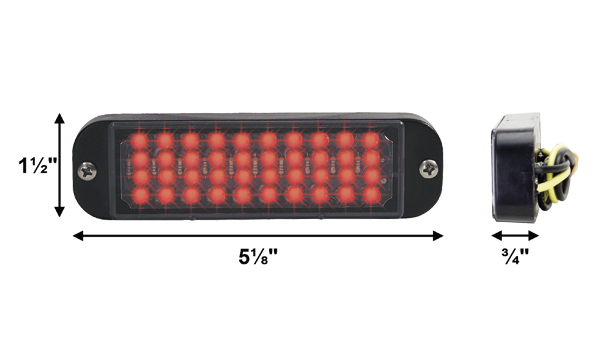

Dimensions: 1-1/2" H x 5-1/8" W x 11/16" D
Weight: 3.2 oz.
Wiring: 18" power cord
Micro-Lite LED Lights
Suggested retail price
Single Light -Solid Array - Black Housing
11.9000 Amber or Red $ 85.30
11.9000 Blue or White $100.90
Single Light - Solid Array - Aluminum Housing
11.9010 Amber or Red $ 85.30
11.9010 Blue or White $100.90
Single Light - Split Array - Black Housing
11.9200 Amber or Red $ 98.84
11.9200 Blue or White $115.98
11.9200 Amber or Red & Blue or White $107.82
Single Light - Split Array - Aluminum Housing
11.9210 Amber or Red $ 98.84
11.9210 Blue or White $115.98
11.9210 Amber or Red & Blue or White $107.82

Micro-Lite LED Light
Additional Views:   1    2    3    4    5    6    7
Parts and Accessories
Suggested Retail Price
11.1002 LED Double Switch $34.90
11.1005 LED Flasher - Standard Patterns $32.96
11.1005SF LED Flasher - Strobe Patterns $32.96
11.1005-27 LED Flasher - 27 Strobe Patterns $43.48
11.1005.STT LED Flasher - Stop / Turn / Tail $44.12
11.1010SF 4-Output LED Flasher $56.02
11.1012 LED Micro Switch - Switch Only $42.86
11.1025 LED Rotary Switch - with Flasher $78.18
11.1032 LED Micro Switch - Built-In Flasher $64.72

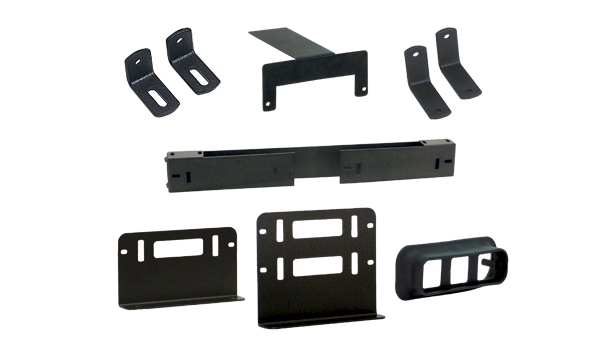

11.2825 Headliner Bracket $14.58
11.4472 L Brackets (pair) $ 6.64
11.4474 Windshield L Brackets (pair) $ 8.78
11.4477 Bail Bracket $ 6.22
12.4407 License Plate Bracket $51.18
90.6043 Micro-Lite Adhesive Backing $ 3.98
90.6109 Side-View Mirror Grommets (pair) $10.58
Instructions
11.9000 / 11.9010 11.9200 / 11.9210 Micro-Lites - (Single Head) View PDF
11.9060 / 11.9070 11.9260 / 11.9270 Micro Lites - (2-Head Kits) View PDF
11.9064 / 11.9074 11.9084 Micro Lites - (4-Head Kits - Solid Arrays) View PDF
11.9264 / 11.9274 11.9284 Micro Lites - (4-Head Kits - Split Arrays) View PDF
