LED Tail Light Flashers

Model 11.1005STT.BTL / 11.1010STT.BTL

  • These solid-state LED flashers are designed for use on a vehicle's existing LED tail lights.
  • When one of the seven patterns on the flasher is activated, the existing tail lights flash and function as warning lights.
  • Vehicle brake light functions override activated flash patterns ensuring normal brake light operation.
  • An optional connection to the third brake light makes the tail lights activate when the brake lights are operating.
  • Epoxy-sealed to ensure reliable operation and protect against moisture, vibration and shock.
  • Surface mounts with screws (provided).
  • Standard 12V; also available in 24V upon request.
  • 11.1005STT.BTL measures 2" H x 1/2" D x 4" W. 11.1010STT.BTL is 3-3/4" H x 7/8" D x 3-5/8" W.
  • For use with LED lights only.
  • Made in the U.S.A.
Specifications
O/P = Output
Model O/P Amps/ O/P Total Amps
11.1005STT.BTL 2 3A Max each 6A Max
11.1010STT.BTL 4 2A Max each 6A Max
Model and Description
Call for pricing

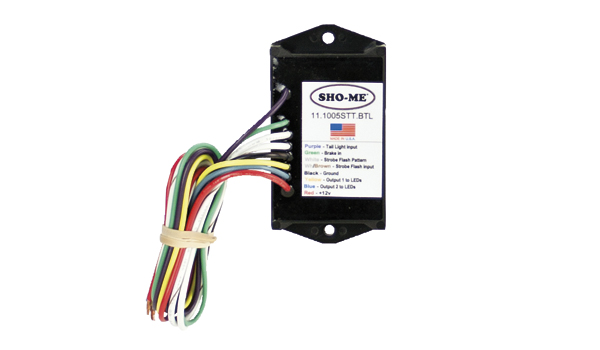

11.1005STT.BTL 2 O/P Tail Light Flasher
11.1010STT.BTL 4 O/P Tail Light Flasher
Instructions
11.1005STT.BTL 2 O/P Tail Light Flasher View PDF
11.1010STT.BTL 4 O/P Tail Light Flasher View PDF

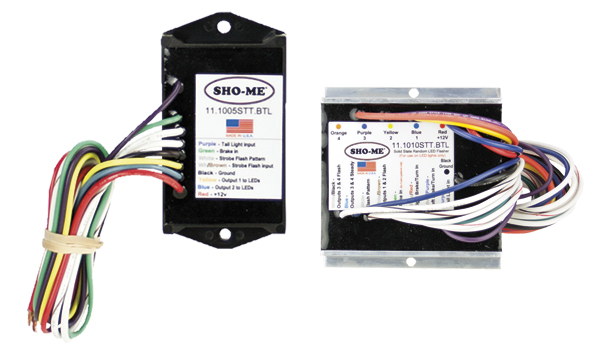

LED Tail Light Flashers

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.





Flash Patterns
1. Quad Alternating
2. MEGA Alternating
3. Double Alternating
4. Quint Alternating
5. Double Simultaneous
6. Quad Simultaneous
7. Random
