MEGA 63 LED Lights
Model 10.6322

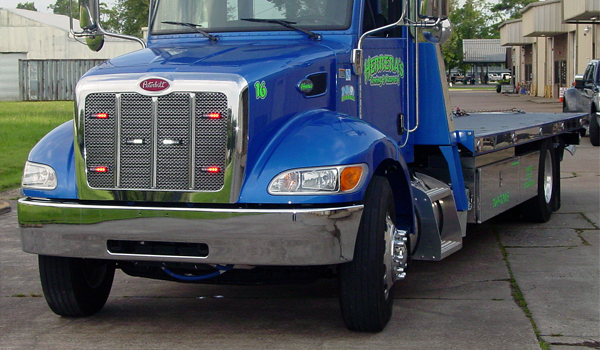

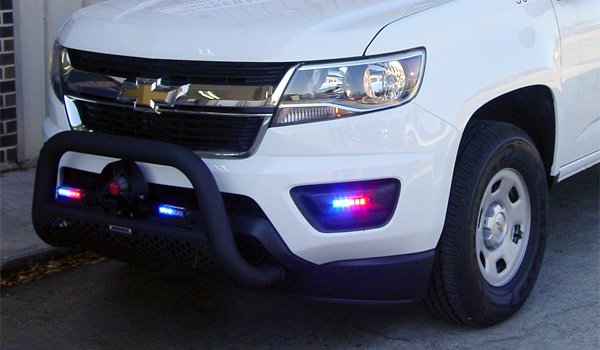

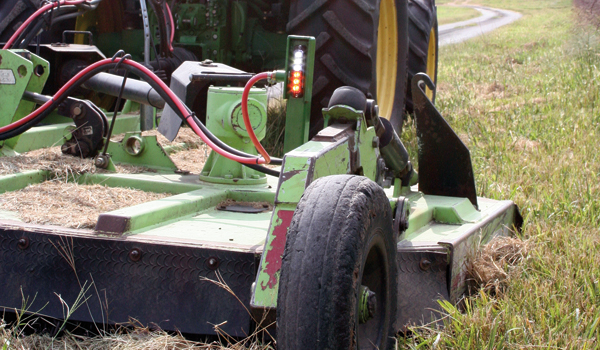

- A small-scale light with a large-scale impact, the MEGA 63 LED light is available with plenty of optional brackets for mounting in countless locations.

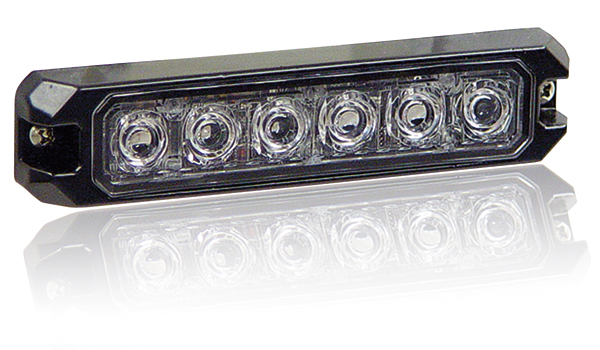

- Six 3W LEDs in each light provide intense warning power that cuts through the darkest night and dazzles even in bright sunlight.

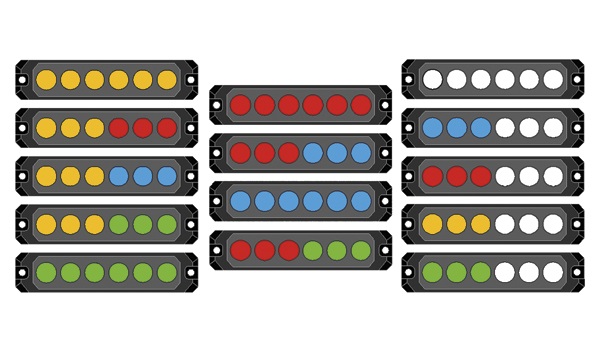

- Create an effective warning display with split arrays in your choice of amber, blue, green, red and white.
- An internal flasher produces 21 selectable flash patterns specifically designed to attract attention. Built-in pattern memory recalls the last pattern used.
- Increase visual impact by synchronizing the flash patterns of multiple hardwired lightheads.
- The cast-aluminum housing and fully-encapsulated electronics withstand extreme weather and rough conditions. A clear diffusing lens creates a widespread light pattern and protects LEDs from dust and debris.

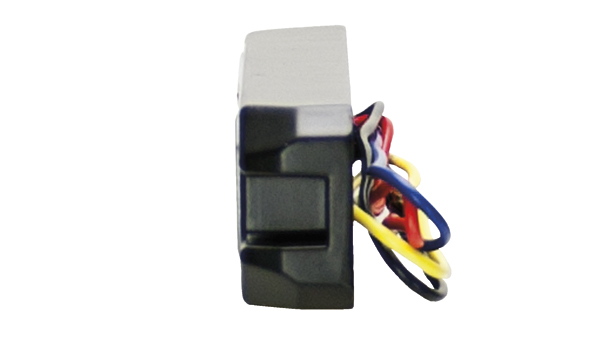

- Includes a mounting gasket, hardware and 6" pigtail.
- 12 - 24 Volt / 1 year warranty.
Specifications
Model |
Amps |
H x D x L |
10.6322 |
0.5A Avg / 0.7A Max |
1-1/8" x 3/4" x 5-1/8" |
Model and Description
Call for pricing |
10.6322 |
MEGA 63 LED Light |

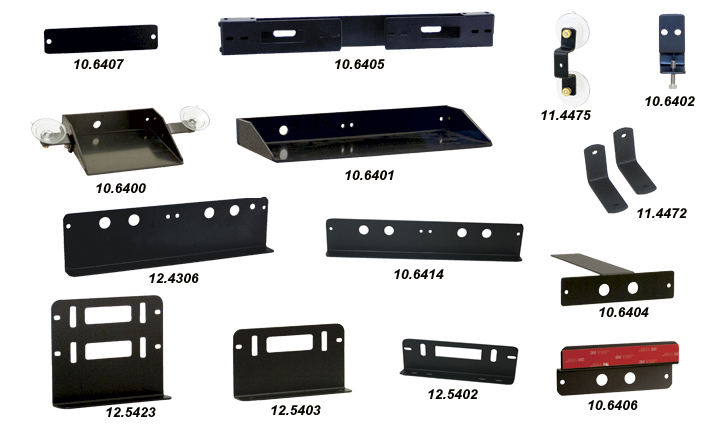

Parts and Accessories
Call for pricing |
|
10.6400 |
Flashback Shield |
10.6401 |
Dual Flashback Shield |
10.6402 |
Hood / Trunk Bracket |
10.6404 |
Headliner Bracket |
10.6405 |

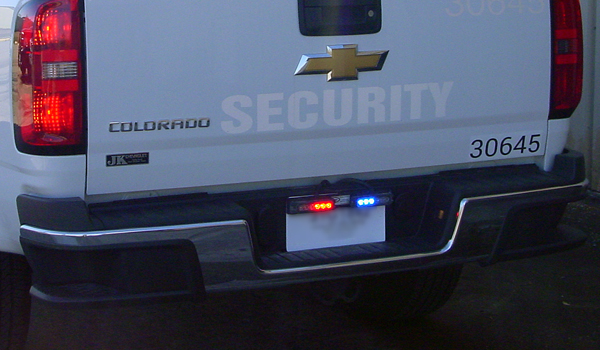

License Plate Bracket |
10.6406 |
Glass Bracket w/ Tape |
10.6407 |
Flat Grill Bracket |
10.6408 |
45° Push Bumper Bracket |
11.1002GSM |
LED Double Switch |
11.4472 |
L Brackets - pair |
11.4475 |
Glass Bracket w/ Suction Cups |
12.4306 |
Side by Side Bracket |
12.5402 |
Low-Profile Single Mt Bracket |
12.5403 |
Single Mount Bracket |
12.5423 |
Double Stack Bracket |
Instructions
10.6322 |
MEGA 63 LED Light |
View PDF |
Click on thumbnail image to open enlarged view.
Flash Patterns
1. |
Quad Burst - Split |
2. |
Quad Burst - All |
3. |
Quad Burst - Alternating |
4. |
Quad - Split |
5. |
Quad - All |
6. |
Quad - Alternating |
7. |
Single - Split |
8. |
Single - All |
9. |
Single - Alternating |
10. |
Super Flash - Split |
11. |
Super Flash - All |
12. |
Super Flash - Alternating |
13. |
Quad/Single - Quad Burst - Split |
14. |
Quad/Single - Quad Burst - All |
15. |
Accelerator - Split |
16. |
Accelerator - All |
17. |
Express Flash |
18. |
California Steady with Pulse |
19. |
California Steady |
20. |
Steady All |
21. |
Cycle Flash - Split & All |
