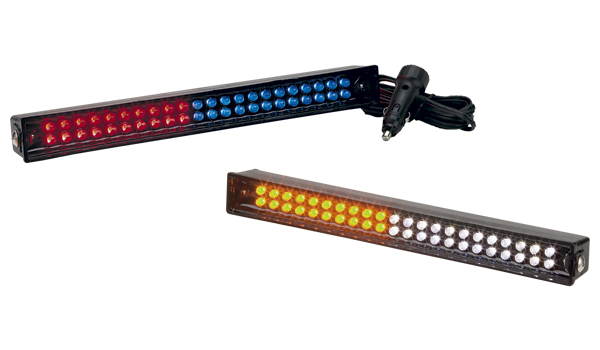

LED Slim Lights

Model 11.8600 / 11.8600F / 11.8600F.CAP

  • Strip light measures only 1 inch tall and 1 inch deep.

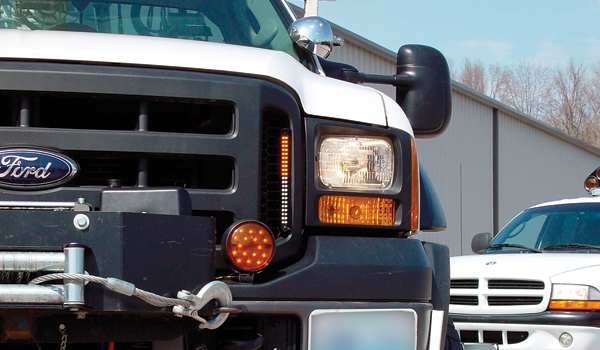

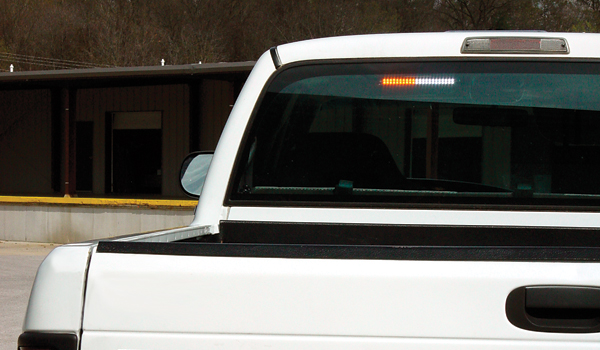

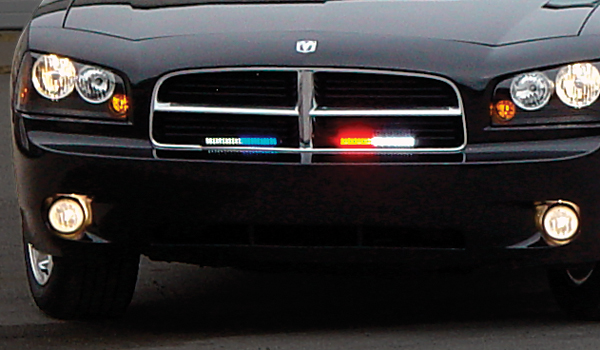

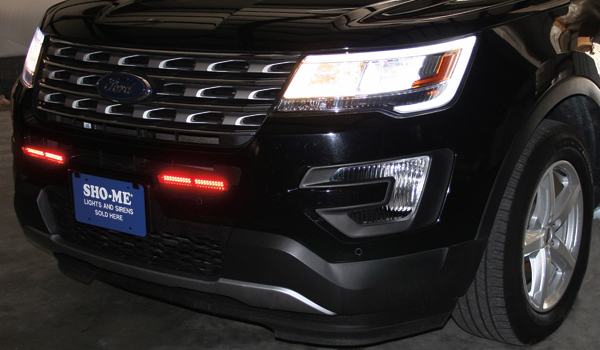

  • Waterproof light mounts on dash, deck, grille or trunk.

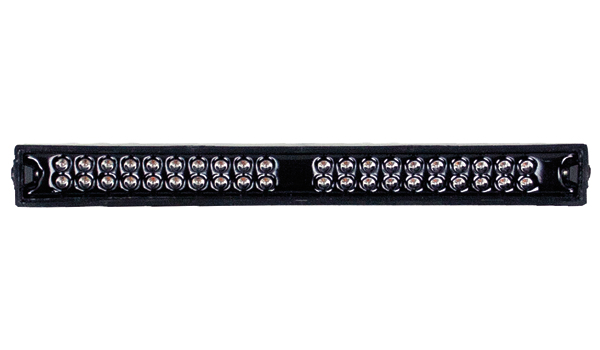

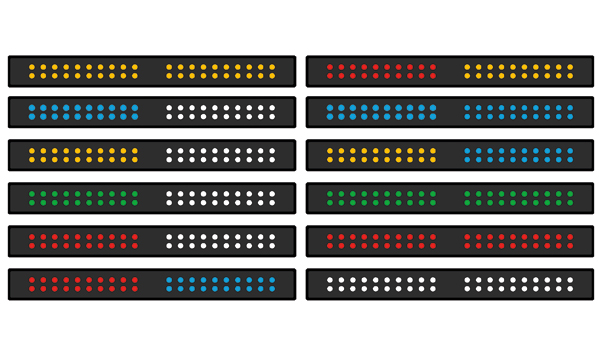

  • 40 high-intensity LEDs in solid or split arrays of amber, blue, green, red or white.

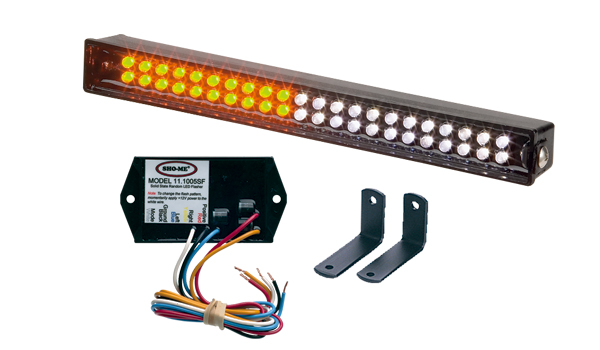

  • Model 11.8600 comes with a remote flasher for the synchronization of multiple lightheads and has a 15' insulated power cord for hardwired installations. (Switch sold separately.)
  • Model 11.8600F.CAP has an internal flasher with seven strobe-style patterns and a fused adapter plug with power and mode switches.
  • Model 11.8600F has an internal flasher with seven strobe-style patterns and a 15' insulated power cord for hardwired installations. (Switch sold separately.)
  • All models come with L brackets.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 0.5 amps max per light
Dimensions: 1" H x 9-1/4" W x 1" D
Wiring: 15 ft. power cord
Suggested Retail Price
Suggested retail price
11.8600 Remote flasher-hardwire $  158.12
11.8600F Internal flasher-hardwire $  158.12
11.8600F.CAP Internal flasher-adapter plug $  195.48
LED Parts and Accessories
Suggested Retail Price
*  Flashers required for 11.8600 Models only.
11.1002 LED Double Switch $ 43.78
11.1012 LED Micro Switch $ 53.76
11.1005STT.BTL *Flshr (Stop, Turn, Bright Tail) $ 55.36
11.4472 L Brackets - pair $   8.34
11.4474 Windshield L Brackets - pair $ 11.00
11.5015 Windshield Adhesive $   6.04
11.6051 Double-Stick Tape - per foot $   4.04
11.8610 Dash Bracket $ 15.34

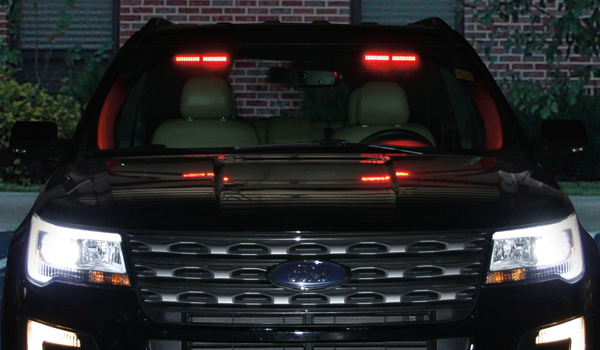

11.8626 Headliner Bracket $ 16.04

LED Slim Light

Click on thumbnail image to open enlarged view.

Link to larger image
Link to larger image
Link to larger image
Link to larger image
Link to larger image
Link to larger image
Link to larger image
Link to larger image
Link to larger image
Link to larger image


Flash Patterns
Random
Alternating Double Flash
Alternating Quad Flash
Alternating Quint Flash
MEGA Alternating Flash
Double Simultaneous Flash
Quad Simultaneous Flash
Instructions
11.8600 Slim Light - remote flasher View PDF
