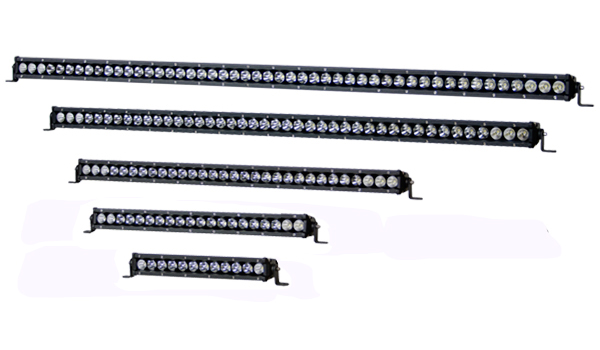

Low-Profile LED ESL X-TRA
Models 10.6060F / 10.6090F / 10/6100F / 10.6120F / 10.6150F / 10.6180F / 10.6200F / 10.6210F / 10.6240F / 10.6250F

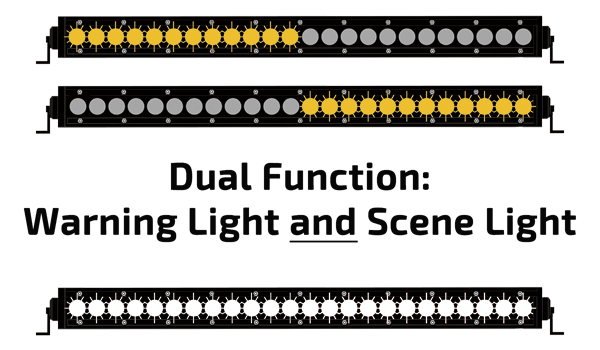

- The Low-Profile LED ESL X-TRA functions as both a warning light and a scene light.
- With a height of only two and a quarter inches, the Low-Profile LED ESL X-TRA fits in small spaces.
- Dual-color CREE® LEDs allow users to switch between a white scene light that fully extends across the housing face, and a warning light with split arrays of different colors.

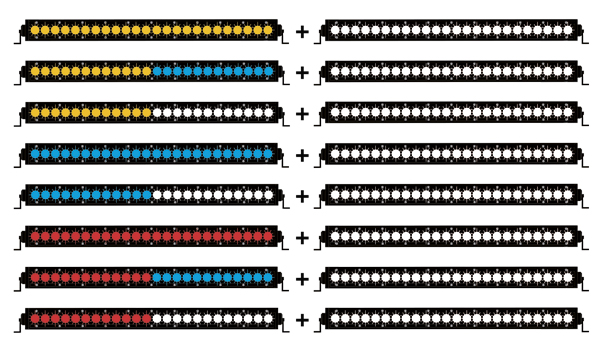

- The dual-color LEDs emit white and one alternate color: either amber, blue, red or white.
- An external, three-output flasher enables uniquely eye-catching patterns for bot the scene light and warning light functions.

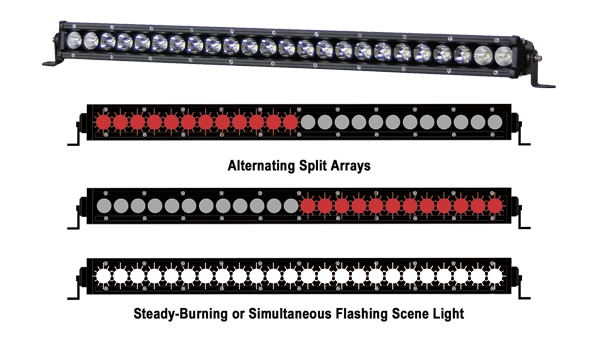

- The scene light can be steady-burning, double flash fast, or flash in a 1-2 ratio with the warning light.
- The warning light can quad flash fast or flash in a 2-1 ratio with the scene light.
- Spot reflectors on the LEDs in the center of the light provide intense, concentrated light.
- Flood reflectors on the LEDs in both end sections of the light cast a widespread glow.
- Weather- and vibration-resistant electronics allow use in exterior or interior applications.
- The heavy-duty, black, cast-aluminum-alloy housings have clear lens covers that protect LEDS from dust and debris.
- Lights measure 2-1/4" tall and 2-7/8" deep with lengths ranging from 14" to 49-1/2" (including brackets).
- Ratcheted brackets permit vertical adjustment of the light face.
- All models include a Model 10.3003 flasher, mounting kit and power cable.
- Additional color combinations available upon request.
- Also available in a standard-profile model with a double row of CREE® LEDs.
- 1 year warranty.
Specifications
Model |
Amps* |
Watts |
LEDs |
Lumens |
Length |
10.6060F |
2.2 |
60W |
12 |
6600 |
14" |
10.6090F |
2.8 |
90W |
18 |
9900 |
19-7/8" |
10.6100F |
2.9 |
100W |
20 |
11000 |
23 1/8" |
10.6120F |
3.4 |
120W |
24 |
13200 |
25-3/4" |
10.6150F |
5.1 |
150W |
30 |
16500 |
33 3/8" |
10.6180F |
5.4 |
180W |
36 |
19800 |
37-1/2" |
10.6200F |
6 |
200W |
40 |
22000 |
43 1/4" |
10.6210F |
6 |
210W |
42 |
23100 |
43-1/2" |
10.6240F |
6.9 |
240W |
48 |
26400 |
49-1/2" |
10.6250F |
7.1 |
250W |
50 |
27500 |
53 3/8" |
*Amp rating @13.8v
Click on thumbnail image to open enlarged view.
Model and Description
Call for pricing |
10.6060F |
60W Low-Profile ESL X-TRA |
10.6090F |
90W Low-Profile ESL X-TRA |
10.6100F |
100W Low-Profile ESL X-TRA |
10.6120F |
120W Low-Profile ESL X-TRA |
10.6150F |
150W Low-Profile ESL X-TRA |
10.6180F |
180W Low-Profile ESL X-TRA |
10.6200F |
200W Low-Profile ESL X-TRA |
10.6210F |
210W Low-Profile ESL X-TRA |
10.6240F |
240W Low-Profile ESL X-TRA |
10.6250F |
250W Low-Profile ESL X-TRA |
Instructions
10.6000F Series |
Low-Profile ESL X-TRA |
View PDF |
Parts and Accessories
Call for pricing |
05.12ESL |
(1) 20A SPST, (1) 15A SPDT |
10.3003 |
LED Flasher - Standard 3 Output |
10.3004S |
LED Flasher - Multi-Pattern |
10.3005D |
LED Flasher - Multi-Option |
