LED ESL X-TRA

Models 10.5072F / 10.5120F / 10.5180F / 10.5240F / 10.5300F

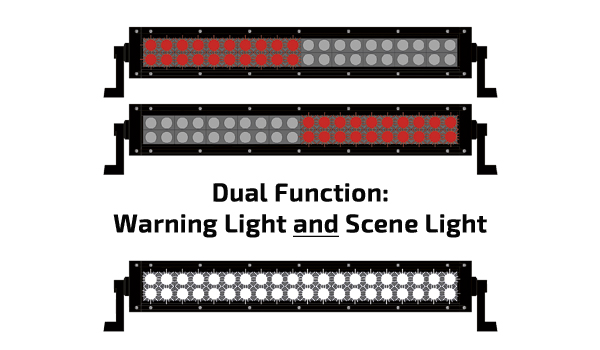

  • The LED ESL X-TRA is the simple solution to the need for both a warning light and a scene light.
  • Dual-color CREE® LEDs allow users to switch between a white scene light that fully extends across the housing face, and a warning light with split arrays of different colors.

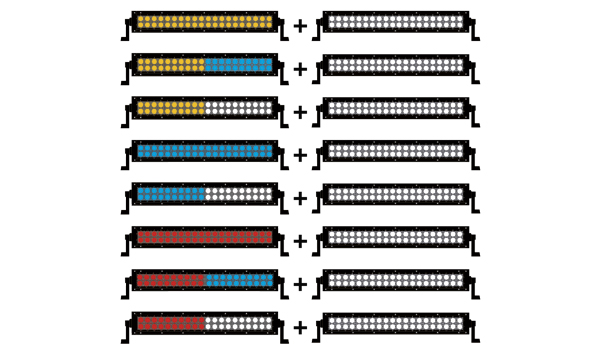

  • The dual-color LEDs emit white and one alternate color: either amber, blue, red or white.
  • An external, three-output flasher enables uniquely eye-catching patterns for both the scene light and warning light functions.

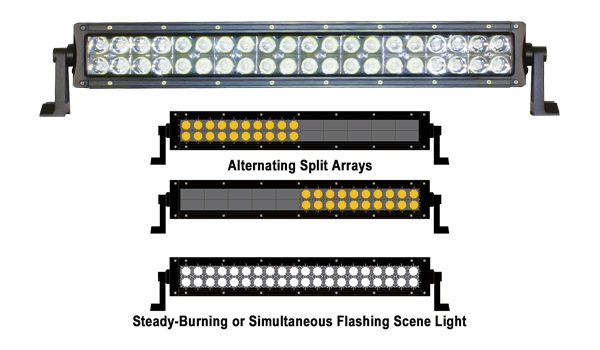

  • The scene light can be steady-burning, double flash fast, or flash in a 1-2 ratio with the warning light.
  • The warning light can quad flash fast or flash in a 2-1 ratio with the scene light.
  • Spot reflectors on the LEDs in the center of the light provide intense, concentrated light.
  • Flood reflectors on the LEDs in both end sections of the light cast a widespread glow.
  • Weather- and vibration-resistant electronics allow use in exterior or interior applications.
  • The heavy-duty, black, cast-aluminum-alloy housings have clear lens covers that protect LEDS from dust and debris.
  • Lights measure 5" tall and 3-1/2" deep with lengths ranging from 16-1/2" to 54-1/2" (includes brackets).
  • Ratcheted brackets permit vertical adjustment of the light face.
  • All models include a Model 10.3003 flasher, mounting kit and power cable.
  • Additional color combinations available upon request.

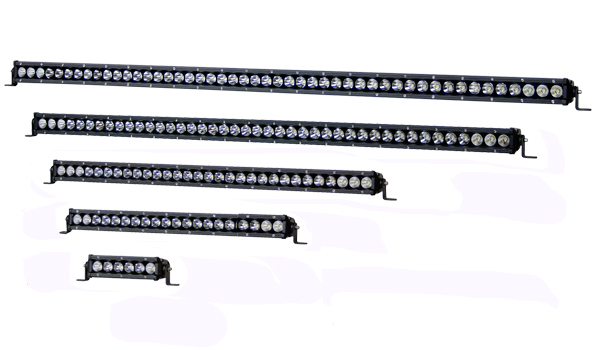

  • Also available in a low-profile model with a single row of CREE® LEDs.
  • 1 year warranty.
Specifications
Model Amps Watts LEDs Lumens Length
10.5072F 4.0 72W 24 4200 16-1/2"
10.5120F 8.0 120W 40 7200 24-5/8"
10.5180F 11.0 180W 60 10800 34-3/4"
10.5240F 15.0 240W 80 12600 44-3/4"
10.5300F 19.0 300W 100 14400 54-1/2"

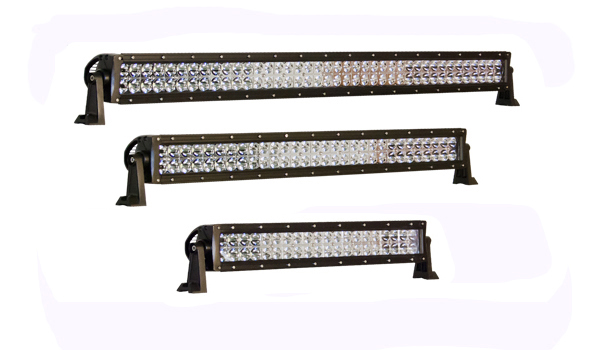

ESL X-TRA LED Light

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.






Model and Description
Call for pricing
10.5072F 72W ESL X-TRA
10.5120F 120W ESL X-TRA
10.5180F 180W ESL X-TRA
10.5240F 240W ESL X-TRA
10.5300F 300W ESL X-TRA
Instructions
10.5000F Series ESL X-TRA View PDF
Parts and Accessories
Call for pricing
05.12ESL (1) 20A SPST, (1) 15A SPDT
10.3003 LED Flasher - Standard 3 Output
10.3004S LED Flasher - Multi-Pattern
10.3005D LED Flasher - Multi-Option
