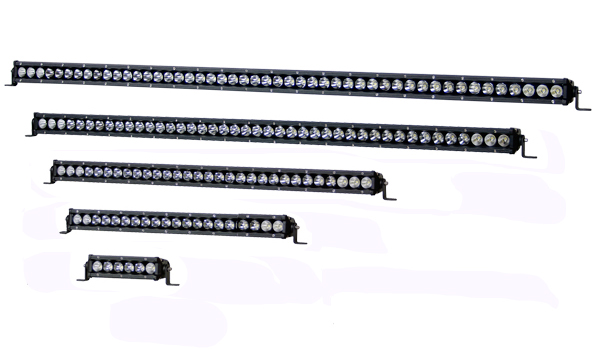

Low-Profile LED Scene Lights

Models 10.4030 / 10.4060 / 10.4090 / 10.4120 / 10.4150 / 10.4180 / 10.4210 / 10.4240

  • 5W LEDs light up dark areas like daylight.
  • Flood lenses on outer LEDs spread light for wide, even coverage; spot lenses on the center LEDs produce a concentrated, long-reaching beam.
  • Energy-efficient white (6000K) LEDs are long-lasting and maintenance free.
  • Weather and vibration resistant.

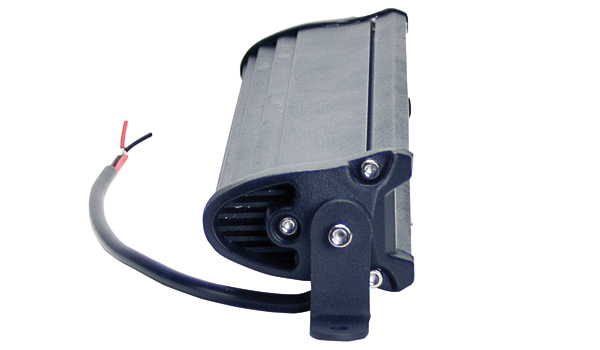

  • Made of high-strength extruded aluminum, the housing has integral ratchets for perfect vertical positioning of the light beam.
  • Lights measure 2-1/4" tall and 2-7/8" deep with lengths ranging from 8-1/4" to 49-1/2" with brackets.
  • Includes installation hardware & 12" insulated cable.
  • 12V - 24V / 1 year warranty.
Specifications
Model Amps LEDs Lumens Length

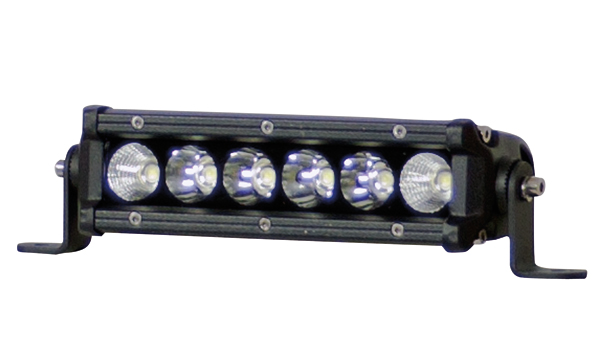

10.4030 1.0A (6) 5W 3300 8-1/4" L

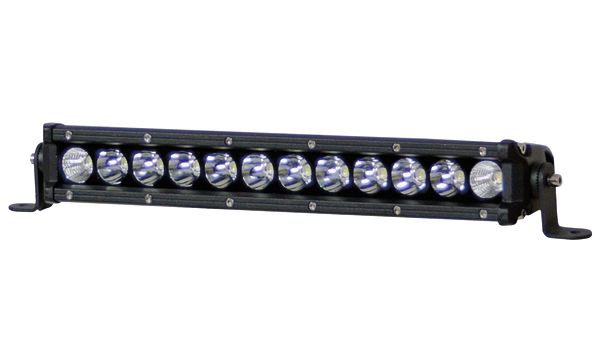

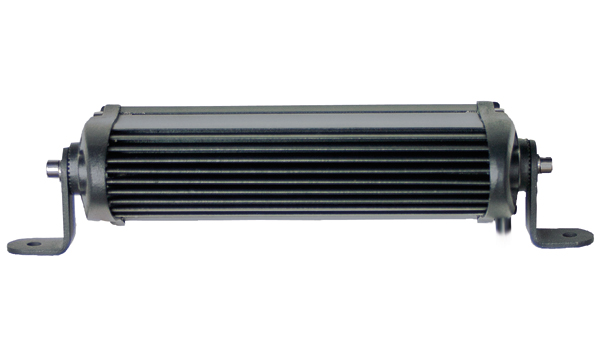

10.4060 2.1A (12) 5W 6600 14" L

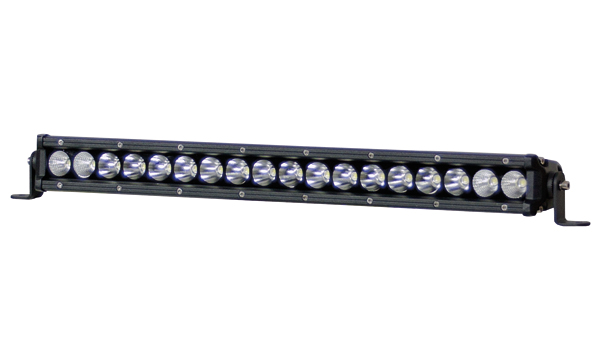

10.4090 3.5A (18) 5W 9900 19-7/8" L

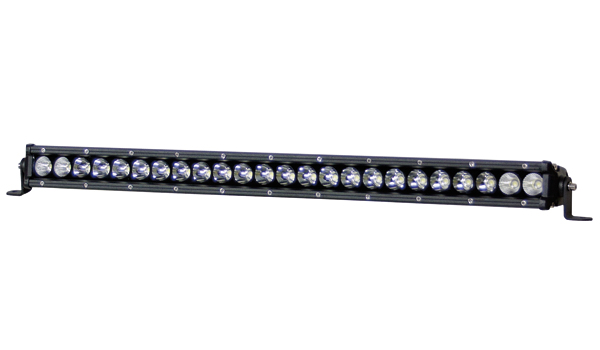

10.4120 4.5A (24) 5W 13200 25-3/4" L

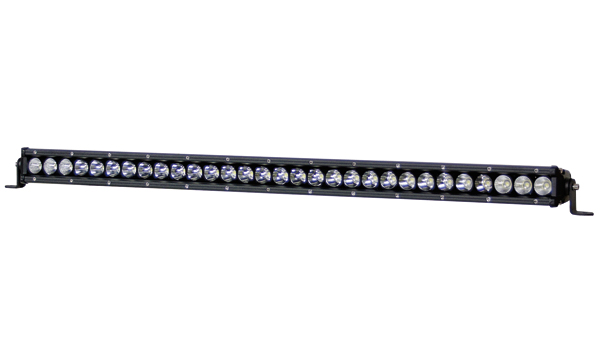

10.4150 5.5A (30) 5W 16500 31-3/4" L

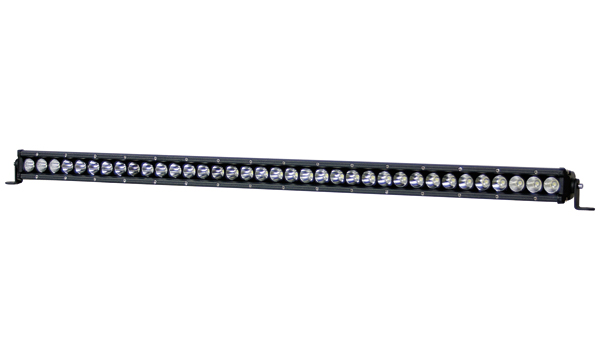

10.4180 7.1A (36) 5W 19800 37-1/2" L

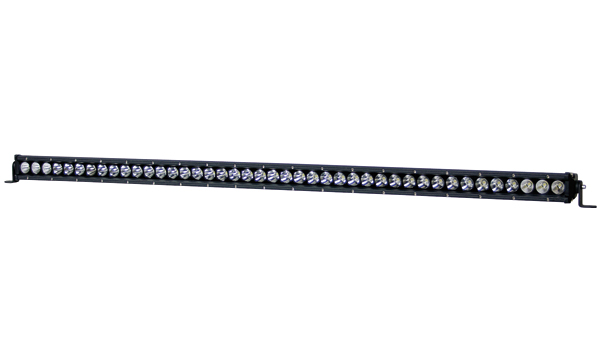

10.4210 8.1A (42) 5W 23100 43-1/2" L
10.4240 9.5A (48) 5W 26400 49-1/2" L
Model and Description
Call for pricing
10.4030 30W Low-Profile Scene Light
10.4060 60W Low-Profile Scene Light
10.4090 90W Low-Profile Scene Light
10.4120 120W Low-Profile Scene Light
10.4150 150W Low-Profile Scene Light
10.4180 180W Low-Profile Scene Light
10.4210 210W Low-Profile Scene Light
10.4240 240W Low-Profile Scene Light

Low-Profile LED Scene Lights

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.


Instructions
10.4000 Series Instructions View PDF
