SHO-OFF®
Multi-Purpose LED Light

Models 12.1314 / 12.1314.CAP

  • Just four inches long, the SHO-OFF® Multi-Purpose Light brings 18W of powerfully bright light to just about any nook or cranny.
  • Six 3W SHO-OFF® LEDs are intensified with a reflector module to provide outstanding visibility and wide-angle light even in bright sunshine.

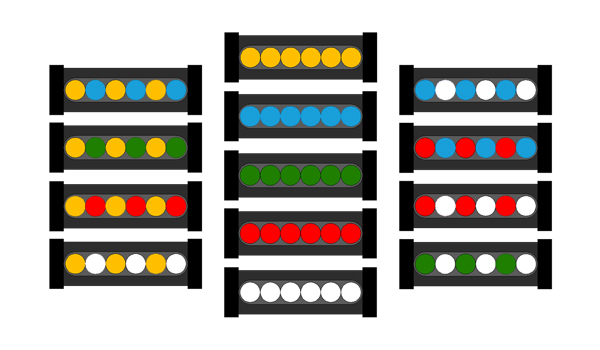

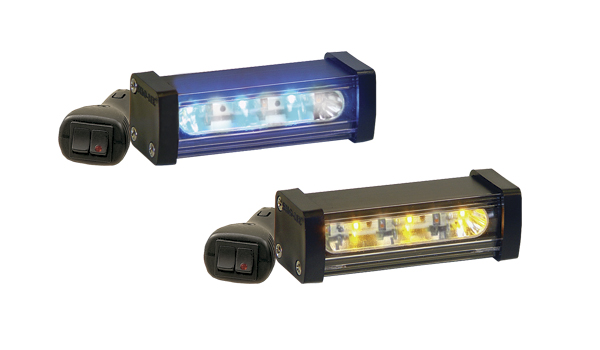

  • Choose solid or interwoven arrays in standard warning colors: amber, blue, green, red and white.
  • An internal flasher produces 29 selectable flash patterns specifically designed to draw attention. Built-in pattern memory recalls the last pattern used.
  • The flash patterns of multiple hardwired lightheads can be synchronized for additional impact.
  • Model 12.1314.000 has an 18" pigtail for direct wiring.

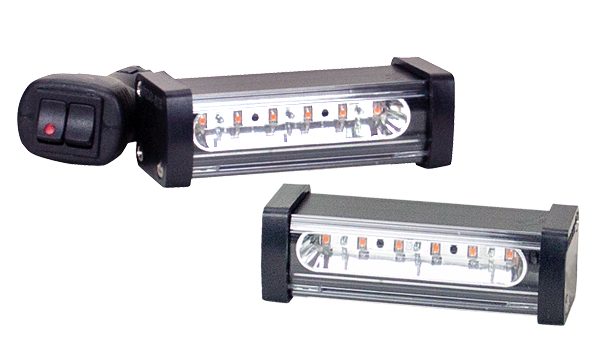

  • Model 12.1314.CAP has an accessory outlet plug with lighted POWER and MODE switches on a 14' straight cord.
  • Rugged aluminum housing has T-slot channels on the housing back and underside to simplify installation.
  • Clear lens cover protects LEDs from dust and debris.

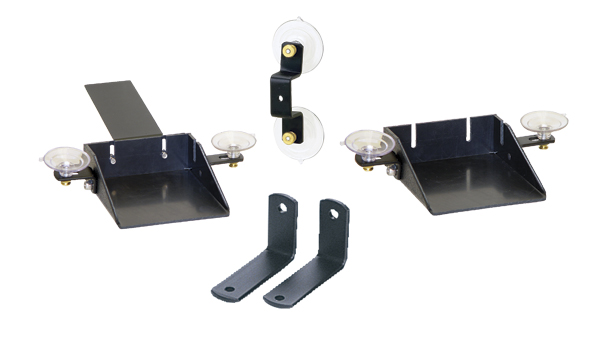

  • Two "L" brackets are included with every light. Additional mounting brackets are sold separately.
  • Lights measure 1-3/8" H x 1-1/2" D x 4" L.
  • 12 Volt / 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amps Features
12.1314.000 0.75A - 1.5A 18" direct wire pigtail
12.1314.CAP 0.75A - 1.5A Accessory plug
Suggested Retail Price
Suggested retail price
12.1314.000 Multi-Purpose Light - HW $ 144.00
12.1314.CAP Multi-Purpose Light - Plug-In $ 162.00
Parts and Accessories
Suggested retail price
11.1002 LED Double Switch $  43.78
11.1012 LED Micro Switch $  53.76
11.4472.BTI L Brackets - pair $    8.34
11.4475 Glass Brkt w/ Suction Cups $    6.80
12.0100 Flashback Shield $  37.82
12.0101 Headliner / Flashback Shield $  41.06

SHO-OFF Multi-Purpose LED Lights

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.



Flash Patterns
1. Single (all) 16. Quad ON (split)
2. Double (all) 17. Triple (split)
3. Quad (all) 18. 12 Flash (split)
4. 8 Flash (all) 19. Random 11-18
5. Double ON (all) 20. ½ Steady / ½ Single
6. Quad ON (all) 21. ½ Steady / ½ Double
7. Triple (all) 22. ½ Steady / ½ Quad
8. 12 Flash (all) 23. ½ Steady / ½ 8 Flash
9. Steady (all) 24. ½ Steady / ½ Dbl - ON
10. Random 1-8 25. ½ Steady / ½ Quad - ON
11. Single (split) 26. ½ Steady / ½ Triple
12. Double (split) 27. ½ Steady / ½ 12 Flash
13. Quad (split) 28. Random 20-27
14. 8 Flash (split) 29. Random 1-8, 11-18, 20-27
15. Double ON (split)
Instructions
12.1314.000 Multi-Purpose Light - HW View PDF
12.1314.CAP Multi-Purpose Light - Plug-In View PDF
