SHO-OFF®
LED Warning Sticks

Models 12.1312 / 12.1318 / 12.1324 / 12.1330 / 12.1336

  • With a height about twice the size of a postage stamp, SHO-OFF® LED Warning Sticks provide powerfully bright light without obstructing driver sight lines.

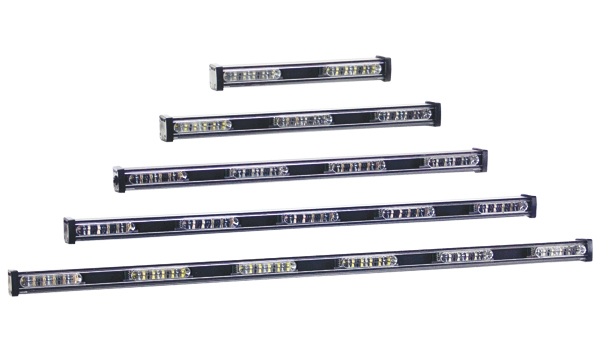

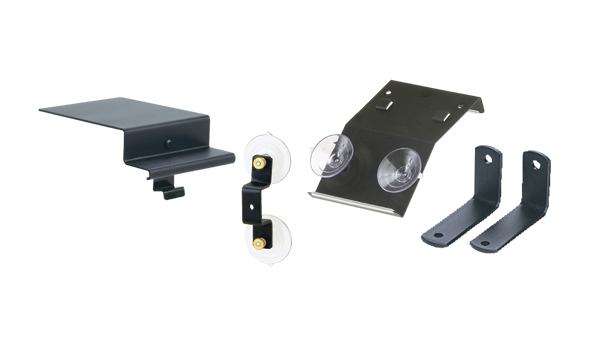

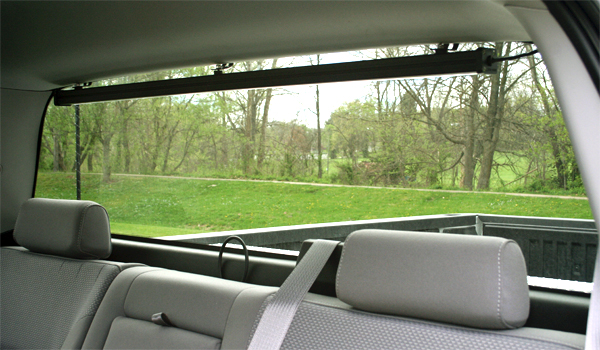

  • Five lengths, ranging from 9" to 31", accommodate a wide variety of interior applications. Optional brackets allow headliner, window, dash and deck mounting.
  • Exceptionally bright 3W LEDs with reflectors provide highly visible, wide-angle light even in bright sunlight.

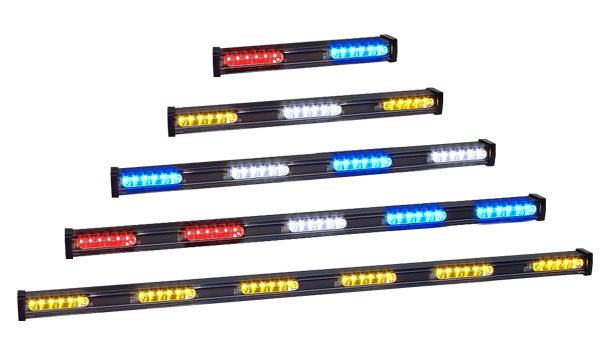

  • Individual modules containing (6) 3W SHO-OFF® LEDS are available in standard warning colors: amber, blue, green, red and white. The modules can be grouped into custom arrangements according to your specifications.
  • An internal flasher produces 27 selectable flash patterns specifically designed to draw attention. Built-in pattern memory recalls the last pattern used.
  • Integral T-slot mounting channels on the housing back and underside permit the positioning of mounting brackets anywhere along the length of the light.
  • The durable aluminum housing has a clear lens cover to protect LEDs from dust and debris.
  • Hardwire models have a 15' power cable and come with heavy-duty "L" mounting brackets.
  • Plug-In models have an adapter plug with power and mode switches on a 15' cable.
  • Mount in a dry location.
  • 12V standard / 5 year warranty
  • Made in the U.S.A.
Specifications
Model Amps LEDs H x D x L
12.1312 2A Max 12 1-3/8" x 1-1/2" x 9"
12.1318 3A Max 18 1-3/8" x 1-1/2" x 14-1/2"
12.1324 4A Max 24 1-3/8" x 1-1/2" x 20"
12.1330 5A Max 30 1-3/8" x 1-1/2" x 25-1/2"
12.1336 6A Max 36 1-3/8" x 1-1/2" x 31"
Suggested Retail Price
Suggested retail price
12.1312.000 9" SHO-OFF Stick - HW $ 283.08
12.1312.CAP 9" SHO-OFF Stick - Plug-In $ 320.48
12.1318.000 14½" SHO-OFF Stick - HW $ 407.92
12.1318.CAP 14½" SHO-OFF Stick - Plug-In $ 445.32
12.1324.000 20" SHO-OFF Stick - HW $ 532.78
12.1324.CAP 20" SHO-OFF Stick - Plug-In $ 570.16
12.1330.000 25½" SHO-OFF Stick - HW $ 646.44
12.1330.CAP 25½" SHO-OFF Stick - Plug-In $ 683.84
12.1336.000 31" SHO-OFF Stick - HW $ 760.16
12.1336.CAP 31" SHO-OFF Stick - Plug-In $ 797.54
Parts and Accessories
Suggested retail price
11.1002 LED Double Switch $  43.78
11.1012 LED Micro Switch $  53.76
11.4471 Flat Glass Bracket w/ Tape $  22.52
11.4472.BTI L Brackets - pair $    8.34
11.4475 Glass Brkt w/ Suction Cups $    6.80
11.8310.BRKT Dash Bracket $  16.04
11.8325.BRKT Headliner Bracket $  18.30

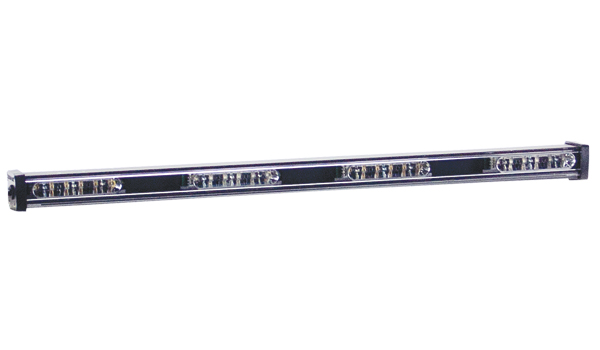

SHO-OFF LED Warning Sticks

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.



Flash Patterns
1. Single (all) 16. Quad ON (split)
2. Double (all) 17. Triple (split)
3. Quad (all) 18. 12 Flash (split)
4. 8 Flash (all) 19. Random 11-18
5. Double ON (all) 20. ½ Steady / ½ Single
6. Quad ON (all) 21. ½ Steady / ½ Double
7. Triple (all) 22. ½ Steady / ½ Quad
8. 12 Flash (all) 23. ½ Steady / ½ 8 Flash
9. Steady (all) 24. ½ Steady / ½ Dbl - ON
10. Random 1-8 25. ½ Steady / ½ Quad - ON
11. Single (split) 26. ½ Steady / ½ Triple
12. Double (split) 27. ½ Steady / ½ 12 Flash
13. Quad (split) 28. Random 20-27
14. 8 Flash (split) 29. Random 1-8, 11-18, 20-27
15. Double ON (split)
Instructions
12.1300 Series SHO-OFF Stick - HW View
12.1300.CAP Series SHO-OFF Stick - Plug-In View
