SHO-ME Lights and Sirens

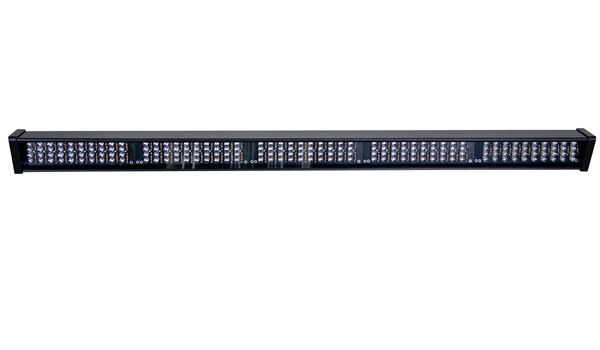

LED Quint Light Stick

Model 11.2725

  • 200 high-intensity LEDs in your choice of amber, blue, green, red or white.
  • Solid-state internal flasher.
  • Standard housing-mounted push button power & mode switches control seven flash patterns. Also available with an optional housing-mounted rotary pattern selector with up to 14 flash patterns (for an additional charge).
  • Clear lens cover protects LEDs from dust and debris.
  • Black anodized aluminum housing.
  • Includes a fused cigarette lighter plug, 10‘ power cord and "L" brackets. Additional mounting options sold separately.
  • Optional waterproofing (for an additional charge) permits installation in wet locations.
  • Back cable exit.
Specifications
Voltage: 12 volt
Amperage: 2.5 amps max
Dimensions: 1-15/16" H x 26" W x 1-15/16" D
Weight: 1 lb. 11 oz.
Wiring: 10’ power cord with adapter plug
LED Quint Light Stick
Suggested retail price
11.2725.00000 Amber or Red $560.34
11.2725.00000 Blue or White $688.16
11.2725.00000 Red-blue-red-blue-red $611.52
  For waterproofing add: $25.00
  For rotary selector add: $38.40

LED Quint Light Stick
Additional Views:   1     2     3     4      5     6
Flash Patterns
Option 1: Standard Flash Patterns
1. Alternating Quad Flash -1-3-5 / 2-4
2. Simultaneous Quad Flash
3. Allternating Flash - 1-5 / 2-4 , MEGA Flash 3
4. Alternating Single Flash - 1-3-5 / 2-4
5. Scan - left-right / right-left
6. Alternating Double Flash - 1-3-5 / 2-4
7. Random - patterns 1 - 6
Option 2: Rotary Selector Flash Patterns
1. Single Sequential Flash - Left
2. Single Sequential Flash - Left & Double Flash End
3. Single Sequential Flash - Right
4. Single Sequential Flash - Right & Double Flash End
5. Center Out
6. Alternating Single Flash
7. Scan 1
8. Scan 2
9. Alternating Quad Flash 1-3-5 / 2-4
10. Simultaneous MEGA Flash
11. Alternating Quad Flash - 1-2 / 4-5
12. Simultaneous Quad Flash
13. Random Fast
14. Random All
Parts and Accessories
Suggested Retail Price
11.2010 Dash Bracket $12.78
11.2026 Headliner Bracket $13.68
11.4472 L Brackets - (pair) $ 6.64
11.4474 Windshield L Brackets - (pair) $ 8.78
Instructions
11.2725 LED Quint Light Stick View PDF
11.2725.R0T Quint Stick w/ rotary switch View PDF
