SHO-ME Lights and Sirens

MicroDash Strobe Light

Model 20.1820

  • Built-in power supply with five random flash patterns.
  • Linear design provides a wide-angle light beam.
  • Mounts on dash or rear deck.
  • Scoop-style housing prevents windshield flashback.
  • Field-replaceable 4“ linear Xenon flash tube

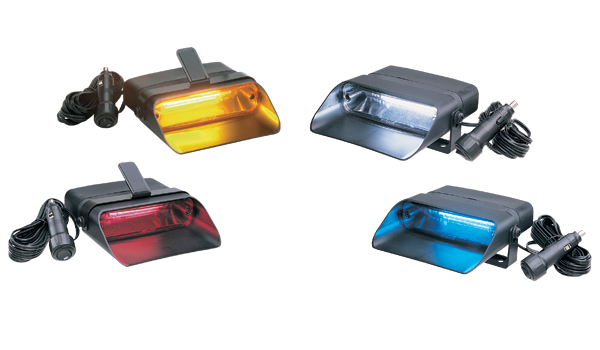

  • Available with amber, blue, clear, green, red or violet lenses.
  • SAE-certified in all safety colors

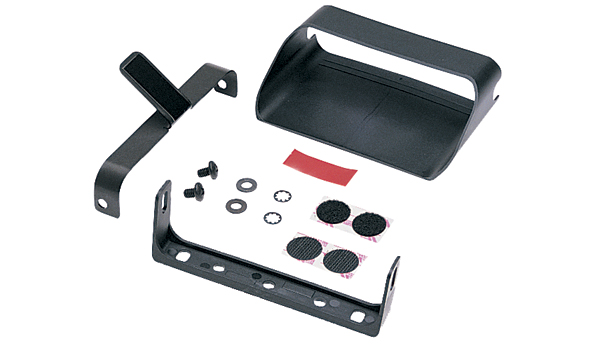

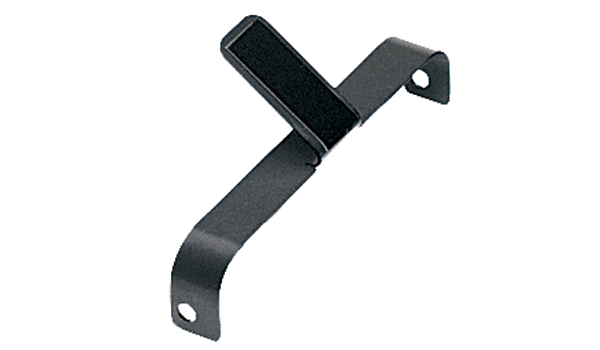

  • An assortment of mounting accessories are included with each light:   windshield bracket, bail-mount bracket, Velcro disks for surface mounting and flashback shield
  • Made in the U.S.A.

Specifications

Input: 10 - 16 volts
Amperage: 2.0 amps
Output: 20 Watts / 17 Joules
Dimensions: 1-3/4" H x 5-7/8" W x 6-1/4" D
Wiring: 12’ straight cord with fused cigarette adapter plug with POWER switch

MicroDash Strobe Light

Suggested retail price
20.1820 MicroDash Strobe Light $346.74

MicroDash Strobe Light
Additional Views:   1    2    3   4    5    6    7    8

Five Randomly Selected Flash Patterns

1. 96 Single FPM
2. 98 Double FPM
3. 87 Triple FPM
4. 70 Quad FPM
5. 260 Single FPM (MEGA)

Parts and Accessories

Suggested retail price

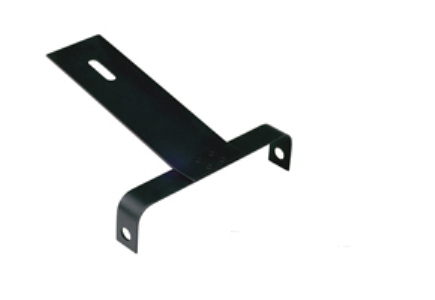

20.1825 Headliner Bracket $21.34
20.1880 Repl. Tube / Reflector Assembly $66.82
20.1885 Repl. Lens - Solid Color $19.60

Instructions

20.1820 Instructions View PDF
