Bendable BTI LED Lights
Model 11.8400 Series and 11.8400F Series

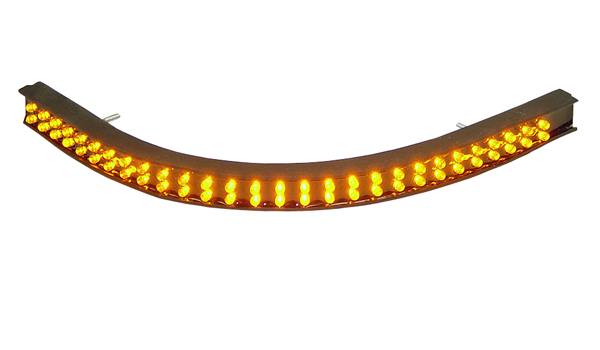

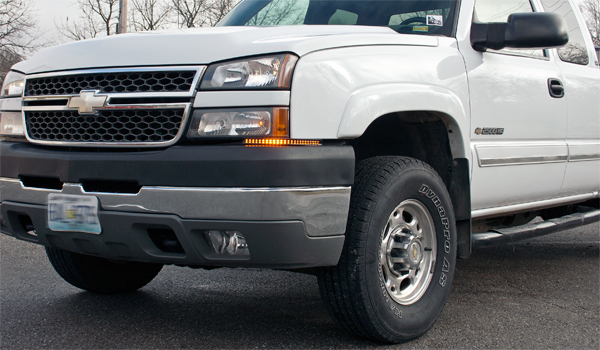

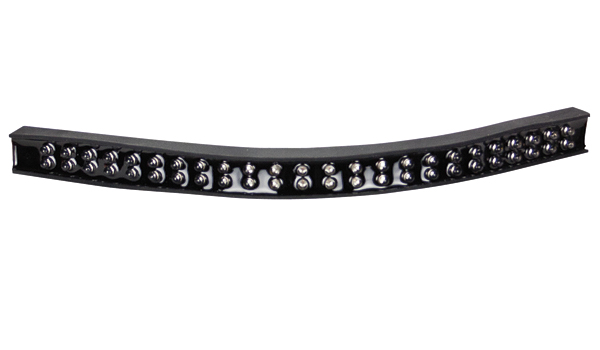

- Bendable BTI LED Lights have a waterproof, flexible housing that bends to fit vehicle contours for multi-directional lighting on corners, sides, rear windows, grilles or trunks.
- These variable-length strip lights are available in 1" increments from 12" to 60" long.
- Each inch of light contains four epoxy-encapsulated LEDs which are moisture, vibration and corrosion resistant.

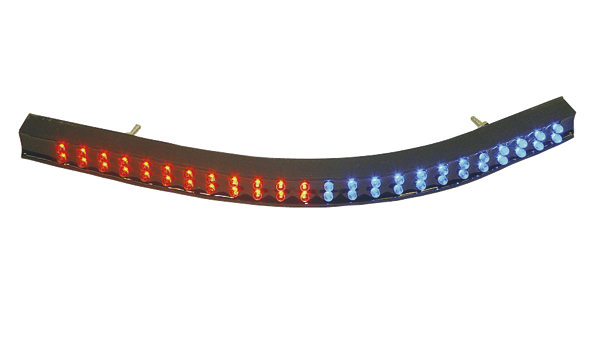

- Create custom LED arrays with up to five different colors in your choice of amber, blue, green, red or white.
- Integral mounting bolts that extend from the back of the housing facilitate a variety of mounting locations.
- Model 11.8400 Series is steady burning and comes with a 10" power cord (minimum) for permanent installation. A remote switch and LED flasher or signal stick controller is required. (Sold separately.)
- Model 11.8400F Series has a seven pattern internal flasher and comes with a 10" power cord (minimum length) for permanent installation. An optional adapter plug is also available.

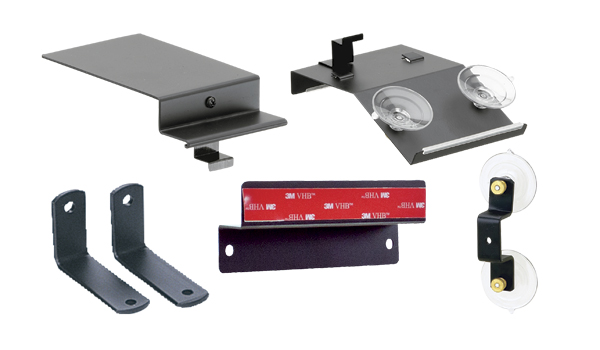

- L brackets are included with every light. A variety of other mounting brackets are sold separately.
- 12 Volt / 5 year warranty on LEDs
- Made in the U.S.A.
Specifications
| Model |
Amp |
H x D x L |
| 11.8400 Series |
.05A / in |
1" x 3/4" x 12" - 60" |
| 11.8400F Series |
.05A / in |
1" x 3/4" x 12" - 60" |
Model and Description
| Call for pricing on additional lengths |
| 11.8412 |
Bendable BTI - Steady-Burn - 12" |
| 11.8412F |
Bendable w/ Internal Flasher -12" |
Click on thumbnail image to open enlarged view.
Flash Patterns - 11.8400F Models Only
| 1. |
Alternating Double |
| 2. |
Alternating Quad |
| 3. |
Alternating Quint |
| 4. |
Alternating MEGA |
| 5. |
Simultaneous Double |
| 6. |
Simultaneous Quad |
| 7. |
Random |
Parts and Accessories
| Call for pricing |
| * Flashers required for 11.8400 Series only. |
| 11.1000 |
Signal Stick Controller |
| 11.1002 |
LED Double Switch |
| 11.1005 |
Flasher - Basic Patterns |
| 11.1005SF |
Flasher - 7 Strobe Patterns |
| 11.1005SF-27 |
27 Pattern LED Flasher |
| 11.1005.STT |
Flasher - Stop / Tail / Turn |
| 11.1005STT.BTL |
Tail Light Flasher |
| 11.1010SF |
4-Output LED Flasher |
| 11.1012 |
LED Micro Switch |
| 11.1025 |
Rotary Switch w/Flasher |
| 11.1032 |
Micro Switch w/ Flasher |
| 11.4471 |
Flat Glass Bracket with Tape |
| 11.4472.BTI |
L Brackets - pair |
| 11.4475 |
Glass Brkt w/ Suction Cups |
| 11.8200 |
Dash Bracket |
| 11.8485 |
Headliner Bracket |
Instructions
| 11.8412 |
Bendable BTI - Steady-Burn - 12" |
View |
| 11.8412F |
Bendable w/ Internal Flasher -12" |
View |
