MEGA LED Dash Lights
Models 10.6330 / .6330.CAP / .6332 / .6332.CAP
- These small yet impressive lights are effective headliner lights as well as powerful dash lights. Either way, their low-profile design permits an unobstructed view.
- Six 3W LEDs in each individual lighthead provide intense warning power that cuts through the darkest night and dazzles even in bright sunlight.
- Available in split arrays of amber, blue, green, red and white.
- A self-contained flasher produces 21 selectable flash patterns specifically designed to attract attention. Built-in pattern memory recalls the last pattern used.
- Each lighthead has a cast-aluminum housing and fully-encapsulated electronics that can withstand extreme weather and rough conditions. Clear diffusing lenses create a widespread light pattern and protect LEDs from dust and debris.

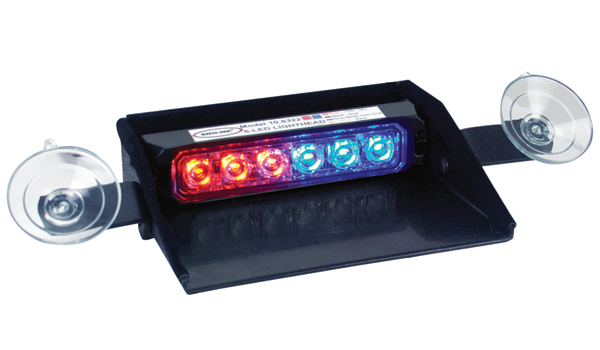

- Model 10.6330 has a single lighthead with a flashback shield and a 15' insulated cable for wired installation.
- Model 10.6332 has two lightheads in one flashback shield and a 15' insulated cable for wired installation.
- Model 10.6330.CAP has a single lighthead with a flashback shield and a 15' cable with a switched adapter plug.

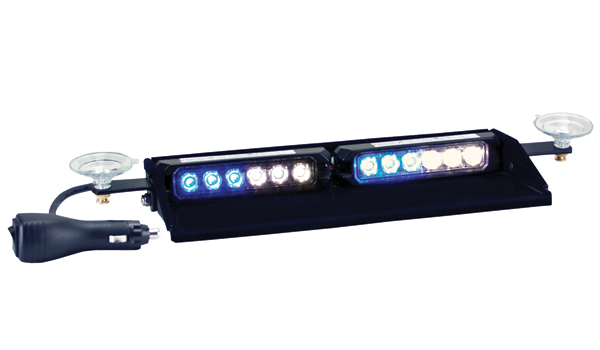

- Model 10.6332.CAP has two lightheads in one flashback shield and a 15' cable with a switched adapter plug.
- 12 - 24 Volt / 5 year warranty.
Specifications
| Models 10.6330 / 10.6330.CAP |
| Amps |
H x D x L - L with suction cups |
| 0.5A Av / 0.7A Max |
1-1/4" x 4-3/4" x 5-1/2" - 9-3/4" |
| |
| Models 10.6332 / 10.6332.CAP |
| Amps |
H x D x L - L with suction cups |
| 1A Avg / 1.4A Max |
1-1/4" x 4-3/4" x 10-3/4" - 15-3/4" |
Model and Description
| Call for pricing |
| 10.6330 |
MEGA LED Dash Light |
| 10.6330.CAP |
MEGA LED Dash Light, Plug In |
| 10.6332 |
Dual MEGA LED Dash Light |
| 10.6332.CAP |
Dual MEGA LED Dash Lt, Plug |
Parts and Accessories
| Call for pricing |
| |
| 10.6404 |
Headliner Bracket |

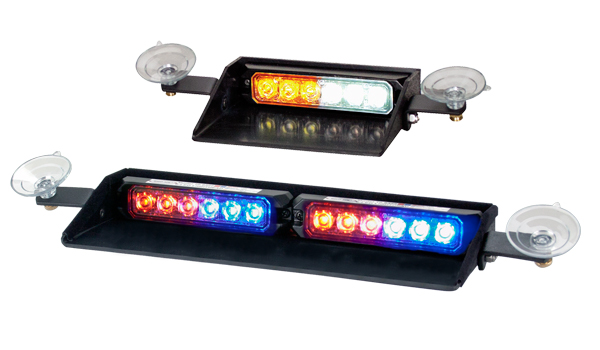

Click on thumbnail image to open enlarged view.
Flash Patterns
| 1. |
Quad Burst - Split |
| 2. |
Quad Burst - All |
| 3. |
Quad Burst - Alternating |
| 4. |
Quad - Split |
| 5. |
Quad - All |
| 6. |
Quad - Alternating |
| 7. |
Single - Split |
| 8. |
Single - All |
| 9. |
Single - Alternating |
| 10. |
Super Flash - Split |
| 11. |
Super Flash - All |
| 12. |
Super Flash - Alternating |
| 13. |
Quad/Single - Quad Burst - Split |
| 14. |
Quad/Single - Quad Burst - All |
| 15. |
Accelerator - Split |
| 16. |
Accelerator - All |
| 17. |
Express Flash |
| 18. |
California Steady with Pulse |
| 19. |
California Steady |
| 20. |
Steady All |
| 21. |
Cycle Flash - Split & All |
Instructions
| 10.6330 / 10.6332 |
Hardwired Models |
PDF |
| 10.6330.CAP / 10.6332.CAP |
Plug-In Models |
PDF |
