12V Portable
Standard LED Arrow Boards

Models 02.6052WP / 02.6116WP / 02.6134WP

• Bring the warning power of an LED arrow board with you wherever you go.
• An internal waterproof flasher eliminates the need for a separate control box. Just plug the arrow board cable into a 12V outlet, set your pattern and go!

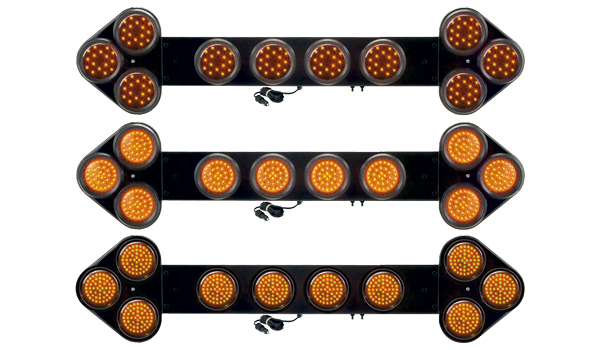

• Ten PAR 36 LED lamps are available in three intensities: Standard PAR 36 LED, Mega-Bright PAR 36 LED and Ultra-Bright PAR 36 LED.
• Alert motorists and direct oncoming traffic with four operational modes (60 FPM): right arrow, left arrow, double arrow and center bar.
• Pattern selection is controlled by two center-off toggle switches located on the arrow board housing.
• Arrow Board housing measures 13" H x 3" D x 54" and is constructed of sturdy, heavy-gauge, epoxy-coated aluminum.
• A durable ABS plastic dust cover ensures reliable operation by protecting the wiring from weather and dust.
• Comes with a heavy-duty, abrasion-resistant, 20-foot power cable with adapter plug.
• Mounting brackets are sold separately.
• Made in the U.S.A.

Specifications

Model	Amps	Bulb
02.6052WP	6.5 Max	52 LEDs
02.6116WP	2.0 Max	16 LEDs
02.6134WP	3.0 Max	34 LEDs

Model and Description

Call for pricing

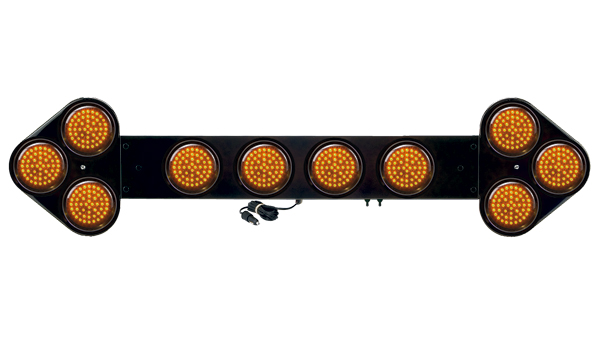

02.6052WP	Board - Ultra-Bright Lamps

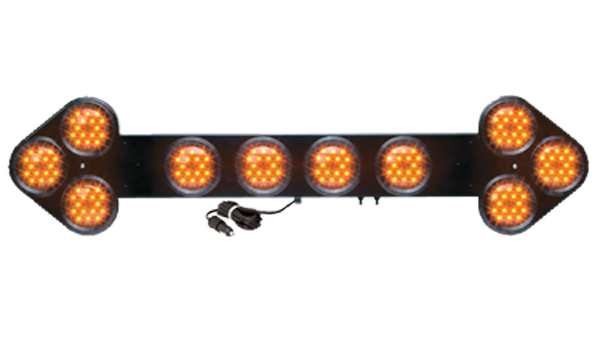

02.6116WP	Board - Standard Lamps

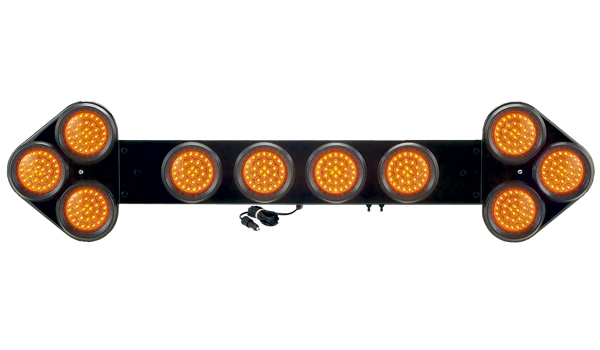

02.6134WP	Board - Mega-Bright Lamps

Related products

Standard Arrow Boards with Control Box

Portable Short Arrow Boards

Flash Patterns

1.	Right Arrow
2.	Left Arrow
3.	Center Bar
4.	Double Arrow

Parts and Accessories

Call for pricing
02.6016	Magnetic Mounting Bracket (pair)
02.6018	Tailgate Mounting Bracket (pair)
02.8516	Standard PAR 36 LED Light
02.8534	Mega-Bright PAR 36 LED Light
02.8552	Ultra-Bright PAR 36 LED Light

Instructions

02.6052WP	Board - Ultra-Bright Lamps	View PDF
02.6116WP	Board - Standard Lamps	View PDF
02.6134WP	Board - Mega-Bright Lamps	View PDF
