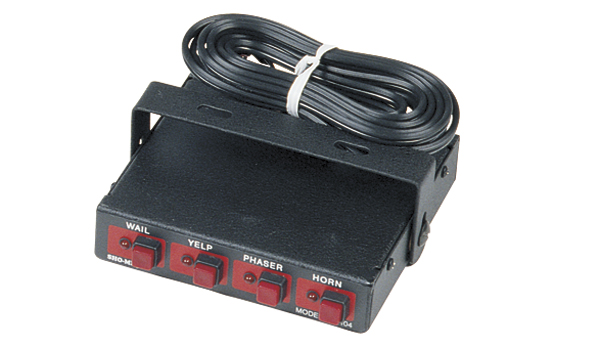

Four-Function
Dash-Mount Siren

Model 30.3104

  • Grab attention with the effective Wail, Yelp, Phaser and Air Horn sounds.
  • Discretely mounts under the dash - even in vehicles with very limited space.

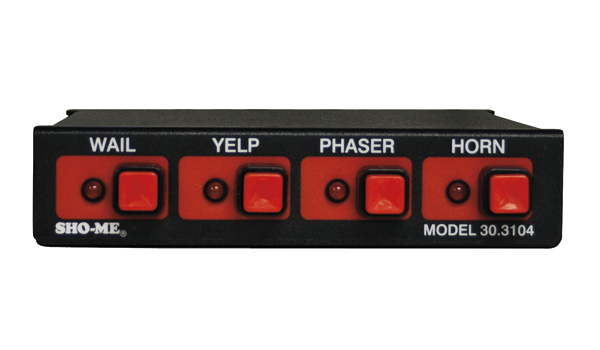

  • The streamlined housing holds two push-ON / push-OFF switches to control the Wail and Yelp sounds and two momentary pushbutton switches to operate the Phaser and Air Horn sounds.
  • Red LED lights indicate at a glance what siren tone has been selected.
  • Powers one 100W RMS speaker with an 11 ohm impedance.  (Speaker available separately. View)
  • Engineered to withstand reverse polarity and high-voltage spikes for reliable operation. Solid-state electrical components provide years of dependable service.
  • Includes an adjustable bail bracket and all wiring.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Watts: 100 watts
Amperage: 10A Average / 15A Max
Dimensions: 1-3/8" H x 6" D x 6" L
Suggested Retail Price
Suggested retail price
30.3104 Four-Function Dash-Mount Siren $   283.36

Four-Function Dash-Mount Siren

Click on thumbnail image to open enlarged view.

Link to larger image
Link to larger image







Click on a button to hear a siren sound.
Instructions
30.3104 Four-Function Dash-Mount Siren View PDF
