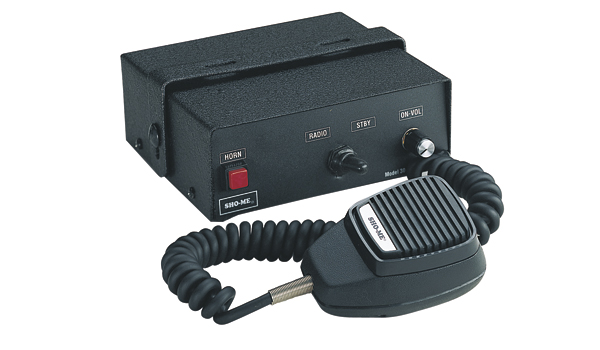

Dash-Mount Amplifier

Model 30.2108

  • The ideal solution for volunteer firemen in areas that prohibit the use of sirens.
  • Used primarily for PA and Radio Rebroadcast, this model also has the Air Horn tone to effectively alert motorists of emergency situations.

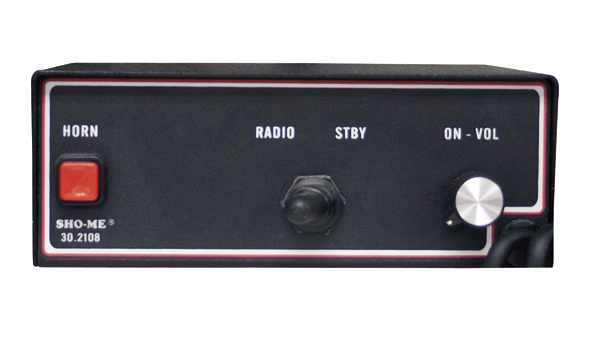

  • The powder-coated steel housing contains a toggle switch for mode selection; a pushbutton momentary switch for the Air Horn tone; and an ON-VOL dial that controls PA volume.
  • The hard-wired, noise-canceling PA microphone has a momentary push-to-talk button on one side. A tangle-free 4' coiled cord conserves space in the vehicle interior and keeps the area neat.
  • Limit one-handed fumbling for controls while driving by adapting the Air Horn tone for vehicle horn ring.
  • Powers one 100W RMS speaker with an 11 ohm impedance.  (Speaker available separately. View)
  • The amplifier is engineered to withstand reverse polarity and high-voltage spikes for reliable operation. Solid-state electrical components provide years of dependable service.
  • Includes a bail bracket, metal microphone mounting clip and all necessary wiring.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Watts: 100 watts
Amperage: 10A Average / 15A Max
Dimensions: 2-1/4" H x 6-1/2" D x 6" L
Suggested Retail Price
Suggested retail price
30.2108 Dash-Mount Amplifier $   515.32

100 Watt Dash-Mount Amplifier

Click on thumbnail image to open enlarged view.

Link to larger image
Link to larger image
Link to larger image






Click on the button to hear the Air Horn sound.
Parts and Accessories
30.0107 Foot Switch $   43.24
30.2110 PA Microphone $   82.94
View our selection of speakers more
Instructions
30.2108 Dash-Mount Amplifier View PDF
