SHO-ME Lights and Sirens

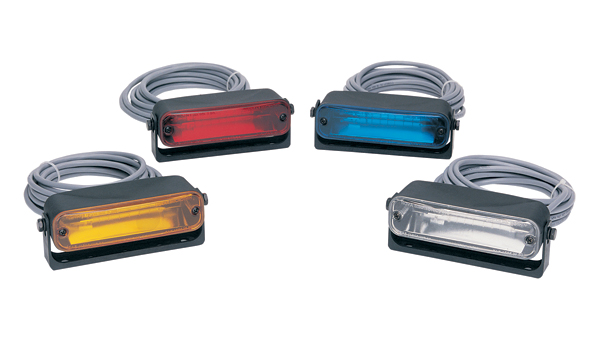

Linear Microthin Strobe Lights

Model 20.1850

  • Linear design provides a wide-angle light beam for superior warning power.
  • Compact size fits in many applications.
  • Field-replaceable 4” linear Xenon flash tube. (20 watt max.)

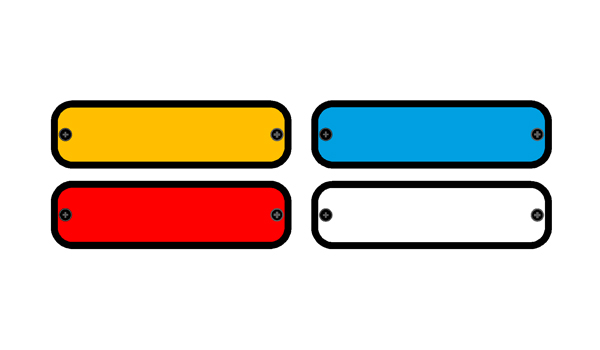

  • Replaceable polycarbonate lens available in amber, blue, clear, green, red and violet.
  • SAE-certified in all safety colors
  • Available individually or in 2- and 4-head kits.
  • 2-head kits include (2) lights with bail brackets, (2) 15’ shielded cables and (1) 40W, 2-outlet power supply.
  • 4-head kits include (4) lights with bail brackets, (4) 15’ shielded cables and (1) 60W, 4-outlet power supply.
Specifications
Input: 12 volts
Output: 20 Watts Max. / 22 Joules
Dimensions: With Bracket:
2-1/2" H x 2-1/2" D x 6-1/4" L
Without Bracket:
1-9/16" H x 2-1/2" D x 6-1/4" L
Wiring: (1) 15’ shielded cable - per light
Linear Microthin Strobe Lights
Suggested retail price
20.1850 Linear Microthin Strobe Light $156.82
20.1852 2-Head Microthin Kit $590.76
20.1854 4-Head Microthin Kit $947.34

Linear Microthin Strobe Lights
Additional Views:   1     2     3    4     5     6     7     8
Parts and Accessories
Suggested retail price

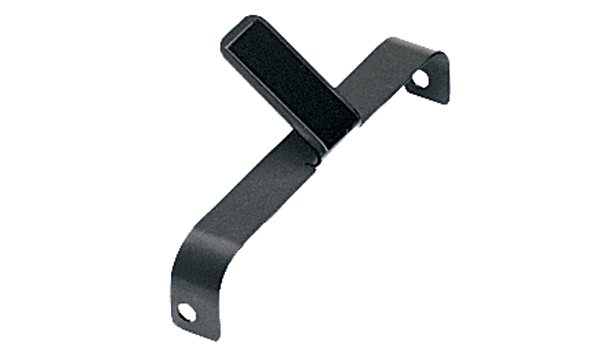

20.1825 Headliner Bracket $18.96

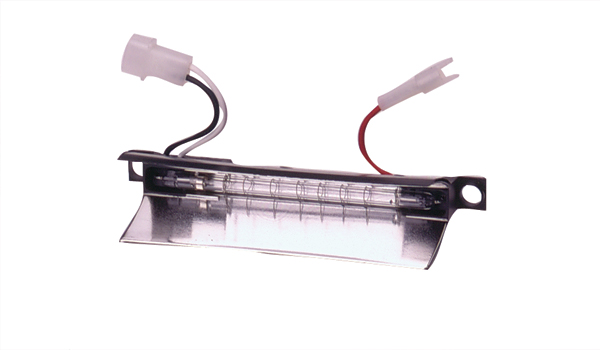

20.1880 Repl. Tube / Reflector Assembly $59.38
20.1885 Repl. Lens - Solid Color $17.40
  Repl. Lens - Split Color $37.26
Instructions
20.1850 Instructions View PDF
