LED Flasher with
Directional Patterns

Model 11.1010.ARROW

  • Make multiple LED lights or a single LED light stick function either as a directional light or as a warning light with this four-output, solid-state LED flasher.
  • With a total of 21 flash patterns available, the Model 11.1010.ARROW LED Flasher offers a selection of seven warning patterns, seven right arrow patterns and seven left arrow patterns.
  • Epoxy-sealed electronics provide reliable operation and protection against moisture, vibration and shock. Excellent for applications requiring exterior mounting.
  • Standard 12V; also available in 24V upon request.
  • Surface mounts with screws (provided).
  • Measures 2" H x 1/2" D x 4" L
  • For use with LED lights only.
  • Made in the U.S.A.
Specifications
O/P = Output
Model O/P Amps / O/P Total Amps
11.1010.ARROW 4 2A Max each 6A Max
Suggested Retail Price
Suggested retail price
11.1010.ARROW LED Flasher - Directional $  68.24
Instructions
11.1010.ARROW LED Flasher - Directional View PDF

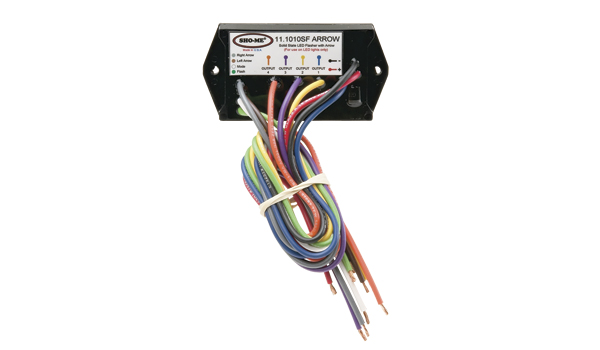

LED Flasher with Directional Patterns

Click on thumbnail image to open enlarged view.

Link to larger image.







Flash Patterns
Warning Patterns
1. Scan
2. Multi-Scan
3. Single Alternating
4. Quad Alternating
5. Quad Alternating 1-3 & 2-4
6. Single Alternating 1-3 & 2-4
7. Random
Right Arrow Patterns
1. Scan Right
2. Chase Right
3. Right Arrow
4. Right Arrow - Double Flash End
5. Quad Scan Right
6. Quad Right
7. Random Right
Left Arrow Patterns
1. Scan Left
2. Chase Left
3. Left Arrow
4. Left Arrow - Double Flash End
5. Quad Scan Left
6. Quad Left
7. Random Left
