LED Flasher with
Three Outputs

Model 10.3003

  • Heavy-duty, solid-state flasher with three 10A outputs has seven strobe-style flash patterns. Ideal for multi-light applications where the use of multiple flashers is impractical.
  • Epoxy-sealed against the elements to provide reliable operation and durability.
  • Standard 12V; also available in 24V upon request.
  • Surface mounts with screws (provided).
  • Measures 7/8" H x 3-3/4" W x 3-5/8" L.
  • For use with LED lights only.
  • Made in the U.S.A.
Specifications
O/P = Output
Model O/P Amps per O/P Total Amps
10.3003 3 10A Max Each 30A Max
Instructions
10.3003 LED Flasher - Three Output View PDF
Suggested Retail Price
Suggested retail price
10.3003 LED Flasher - Three Output $  92.54

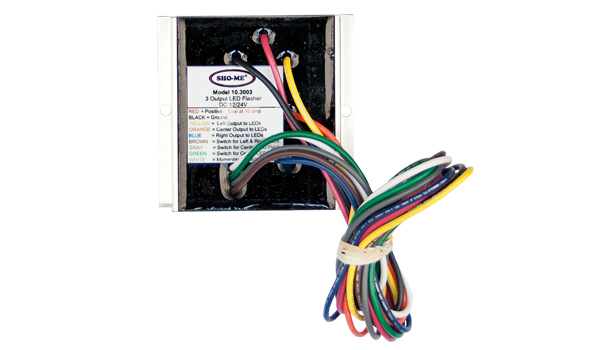

Three-Output LED Flasher

Click on thumbnail image to open enlarged view.

Link to larger image.







Flash Patterns
1. Random
2. Double Alternating
3. Quad Alternating
4. Quint Alternating
5. MEGA Alternating
6. Double Simultaneous
7. Quad Simultaneous
