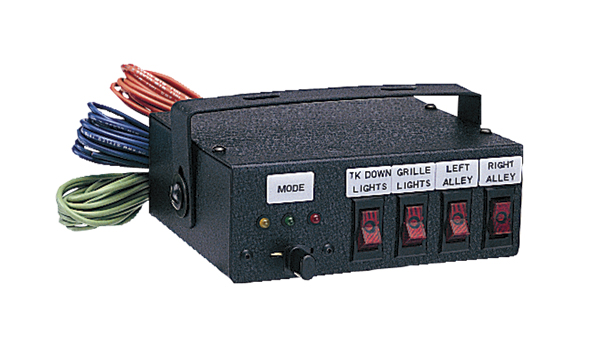

Seven Function Switch Box

Model 05.5540

  • Easily control up to seven functions from one switch box.

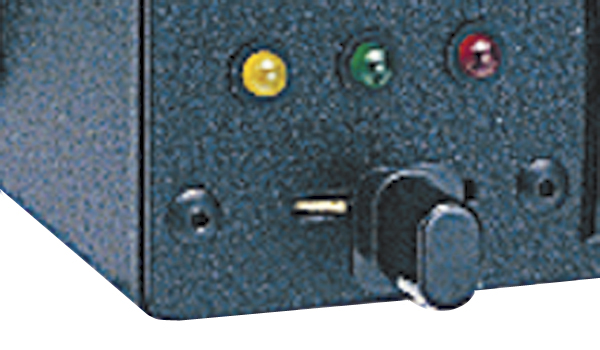

  • One three-position progressive slide switch with indicator lights safely controls primary and secondary functions while in pursuit. Each position has a 40A relay and a 30A Type 2 automatic re-set circuit breaker.
  • Four fully-illuminated SPST rocker switches provide fingertip control of auxiliary functions. Each 20A switch is individually fused.
  • Customized backlit legends help identify switch functions in the dark and can be easily rearranged.
  • Pre-wired for easy installation.
  • Totally enclosed, powder-coated steel case.
  • Comes with an adjustable bail bracket and all necessary wiring.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Dimensions: 2-1/4" H x 5" D x 6" L
Suggested Retail Price
Suggested retail price
05.5540 Seven Function Switch Box $ 498.88
Parts and Accessories
Suggested Retail Price
05.0410 Replacement Bracket $ 14.80
05.0620 Additional Legend $   4.66

Seven Function Switch Box

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.






Instructions
05.5540 Seven Function Switch Box View PDF
