Rocker Switch Panels

Model 05.1 / 05.11

  • Economical and compact, our Rocker Switch Panels provide a simple way to control LED, halogen, strobe or incandescent lights or accessories.
  • A powder-coated, L-shaped, aluminum bracket houses one or two 20A illuminated on/off rocker switches. (Panels with three or more switches are also available upon request.)

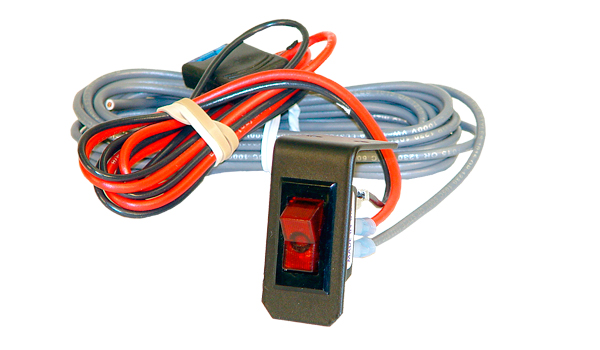

  • Model 05.1 has one positive on/off rocker switch and measures 2" H x 1-1/4" D x 1" L.

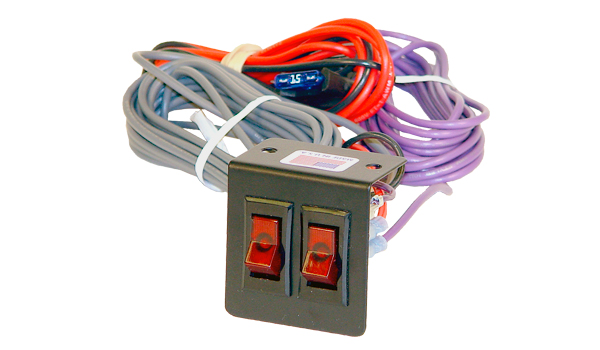

  • Model 05.11 has two positive on/off rocker switches and measures 2" H x 1-1/4" D x 2" L.
  • Panels mount under dash with screws (provided).
  • Each switch comes with a pre-attached 10-foot wiring harness.
  • Made in the U.S.A.
Specifications
Model Switch 1 Switch 2 Total
05.1 20A Max (+)   20A Max
05.11 20A Max (+) 20A Max (+) 40A Max
Suggested Retail Price
Suggested retail price
05.1 Single Rocker Switch Panel $  37.88
05.11 Double Rocker Switch Panel $  59.28

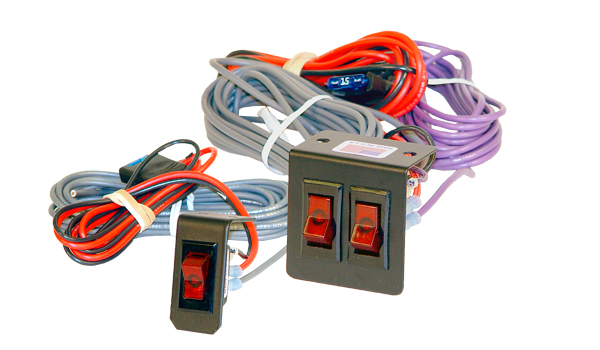

Single and Double Switch Panels

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
