Random Headlight Flashers

Model 03.W3031 / 03.W3125 / 03.W3126

  • For use with halogen and incandescent light heads.
  • Six random flash patterns including alternating quad flash, alternating double flash, quad simultaneous flash, wig wag - 90 FPM, wig wag - 120 FPM, and simultaneous - 90 FPM.
  • Override feature works with the vehicle's high/low beam switch to prevent high beams from flashing.
  • Model 03.W3031 is compatible with vehicles with ground-switching (GS) headlights and with some daytime running lights (DRL).
  • Model 03.W3125 is compatible with some daytime running lights (DRL) and requires a separate power switch.
  • Model 03.W3126 has an additional low-current control wire which permits operation from an existing low-current switch.
  • 100% solid-state.
  • Waterproof.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 4 amps per side
Dimensions: 7/8" H x 3-3/4" W x 3-1/4" L
Suggested Retail Price
Suggested retail price
03.W3031 Random / GS / DRL $ 95.42
03.W3125 Random / DRL / Isolated Switch $ 95.42
03.W3126 Random / Uses Existing Switch $ 95.42

Random Pattern Headlight Flashers

Click on thumbnail image to open enlarged view.

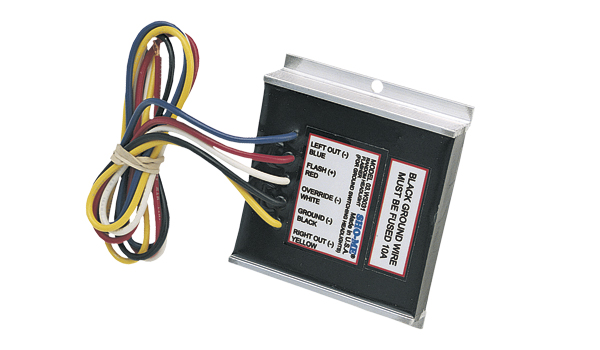

Link to larger image.

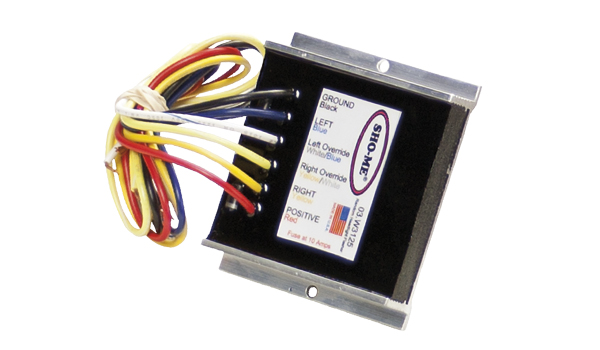

Link to larger image.

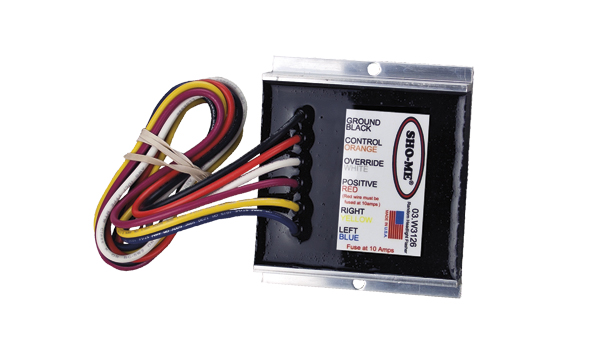

Link to larger image.

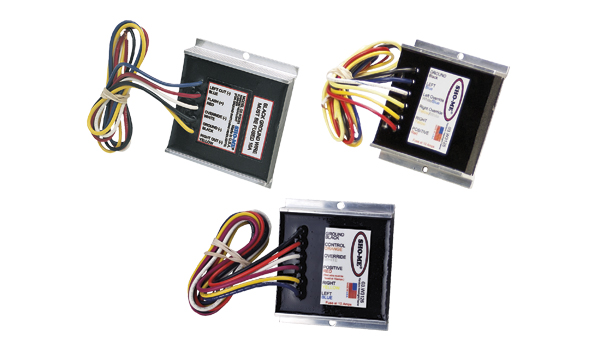

Link to larger image.





Instructions
03.W3031 Random / GS / DRL View PDF
03.W3125 Random / DRL / Isolated Switch View PDF
03.W3126 Random / Uses Existing Switch View PDF
