Alternating Headlight Flashers

Model 03.W3041 / 03.W125 / 03.W126

  • For use with halogen and incandescent light heads.
  • 90 FPM per side. Custom flash rates available.
  • Override feature works with the vehicle's high/low beam switch to prevent high beams from flashing.

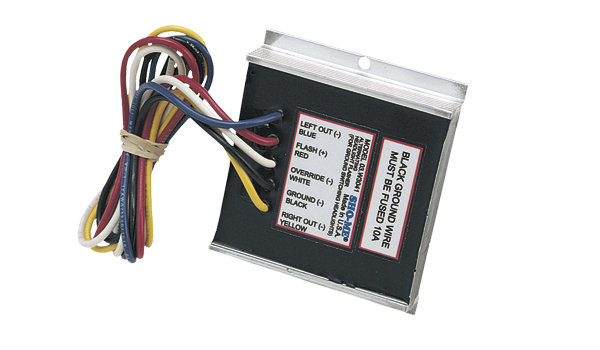

  • Model 03.W3041 is compatible with vehicles with ground-switching (GS) headlights.

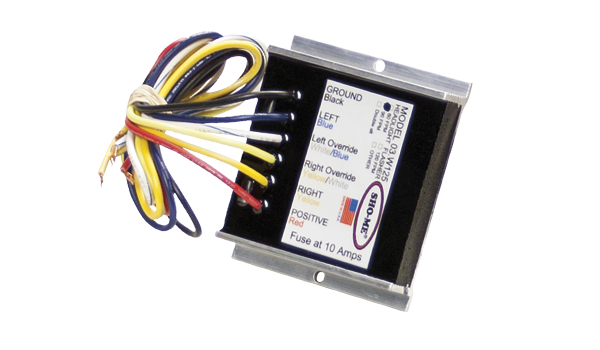

  • Model 03.W125 is compatible with some daytime running lights (DRL) and requires a separate power switch.

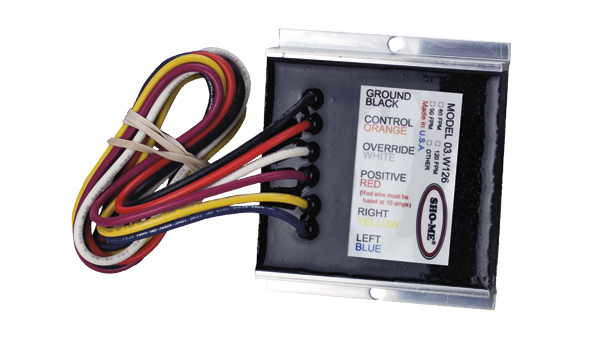

  • Model 03.W126 has an additional low-current control wire which permits operation from an existing low-current switch.
  • 100% solid-state.
  • Waterproof.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Amperage: 4 amps per side
Dimensions: 7/8" H x 3-3/4" W x 3-1/4" L
Suggested Retail Price
Suggested retail price
03.W3041 Alternating / GS $   95.42
03.W125 Altern. / DRL / Isolated Switch $   97.26
03.W126 Altern. / Uses Existing Switch $ 101.14

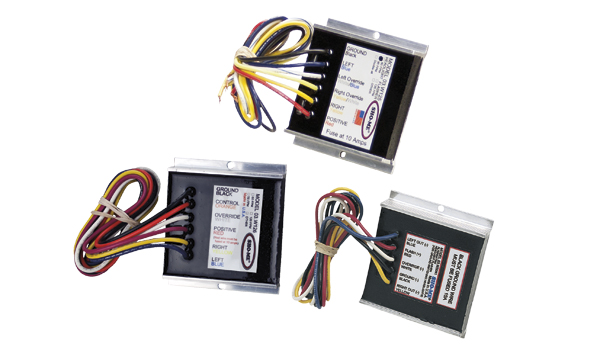

Alternating Headlight Flashers

Click on thumbnail image to open enlarged view.

Link to larger image.
Link to larger image.
Link to larger image.
Link to larger image.





Instructions
03.W3041 Alternating / GS View PDF
03.W125 Altern. / DRL / Isolated Switch View PDF
03.W126 Altern. / Uses Existing Switch View PDF
