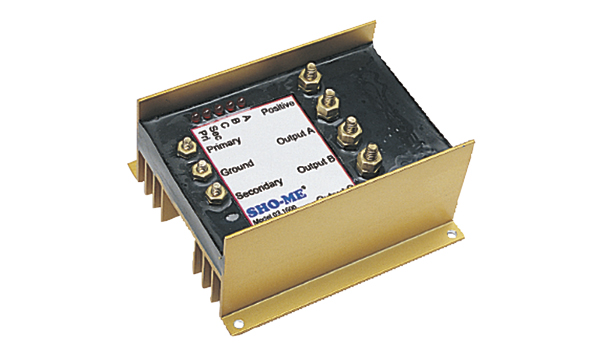

Ambulance Light Flasher

Model 03.1500

  • Flashes all primary and secondary warning lights on standard ambulances.
  • Three conservatively rated outputs: A - 40 amps, B - 24 amps, C - 30 amps.
  • Two standard operating modes.
  • Central ground terminal.
  • High-powered Zener diodes protect transistors from damaging voltage spikes.
  • Low voltage protector.
  • Trouble-shooting LED indicator lights.
  • Gold, anodized aluminum heat sink.
  • 100% solid-state.
  • Made in the U.S.A.
Specifications
Voltage: 12 volt
Dimensions: 2-1/2" H x 4-3/4" W x 5-1/2" L
Suggested Retail Price
Suggested retail price
03.1500 Ambulance Light Flasher $  224.34

Three-Output Ambulance Flasher with gold, anodized aluminum heat sink.

Click on thumbnail image to open enlarged view.

Link to larger image.








Instructions
03.1500 Ambulance Light Flasher View PDF
