LED Dash Lights

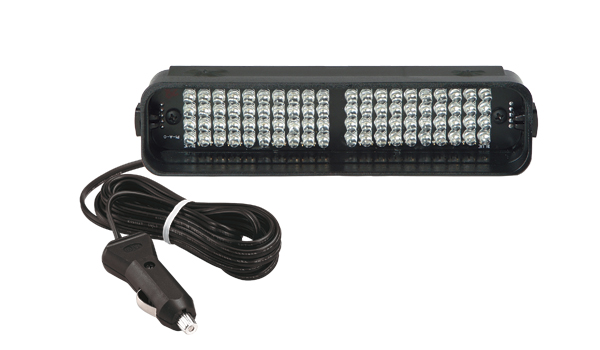

Model 11.8000

  • 80 high-intensity LEDs in a solid or split array.
  • Housing-mounted POWER and MODE switches.

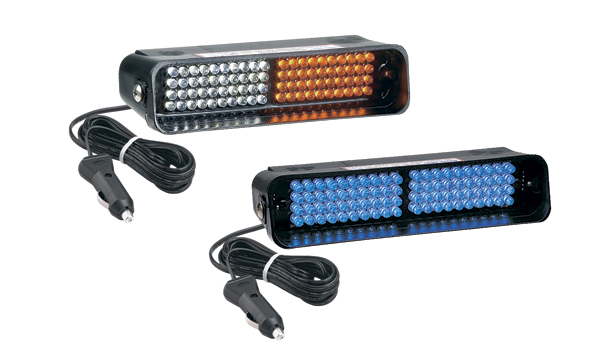

  • Available in solid or split arrays of amber, blue, green, red or white LEDs.
  • Standard or strobe pattern internal flasher.

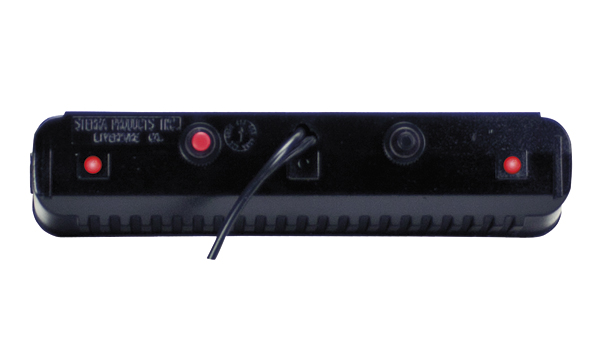

  • Flash pattern indicator LEDs on back of light housing.
  • Comes with a 10-foot power cord with a fused cigarette lighter plug and choice of mounting bracket: "L" brackets, headliner bracket, dash-mount bracket, bail bracket or windshield brackets.
  • Waterproof models available for an additional charge.
Specifications
Voltage: 12 volt
Amperage: 1.0 amps max
Dimensions: 1-1/2" H x 6-1/2" W x 1-13/16" D
Weight: 10 oz.
Wiring: 10 ft. power cord with adapter plug
LED Dash Lights
Suggested retail price
11.8000.000 Amber or Red $226.74
11.8000.000 Blue or White $258.58
11.8000.000 Amber or Red & Blue or White $242.64

LED Dash Light

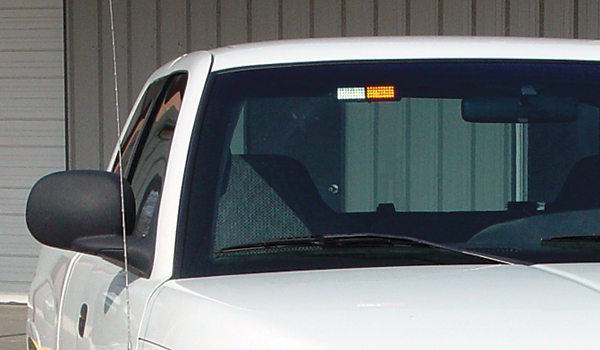

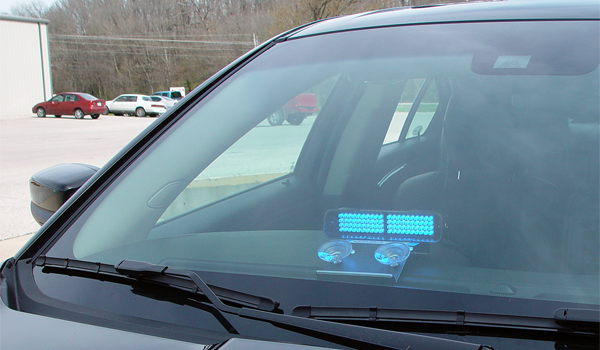

Additional Views:   1     2     3     4
Flash Patterns
Option 1: Standard Flash Patterns
1. Alternating Single Flash - 90 FPM
2. Alternating Double Flash - 90 FPM
3. Alternating Quad Flash - 70 FPM
4. Alternating Single Flash - 120 FPM
5. Automatic Alternating Variable Speed
6. Automatic Simultaneous Variable Speed
7. Automatic Random Select
Option 2: Strobe-Style Flash Patterns
1. Automatic Random Select
2. Alternating Double Flash
3. Alternating Quad Flash
4. Alternating Quint Flash
5. MEGA Alternating Flash
6. Double Simultaneous Flash
7. Quad Simultaneous Flash

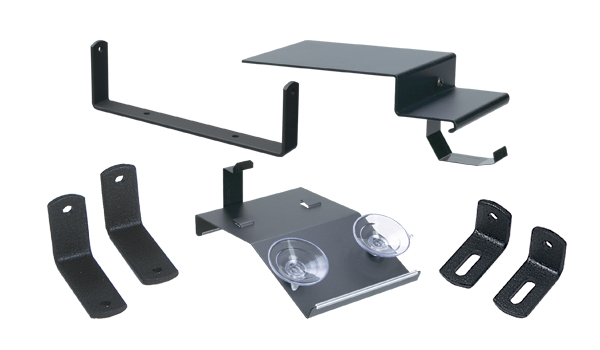

Parts and Accessories
Suggested Retail Price
11.4472 L Brackets - pair $ 6.64
11.4474 Windshield L Brackets - pair $ 8.78
11.5015 Windshield Adhesive $ 4.80
11.8010 Dash Bracket $12.22
11.8015 Bail Bracket $12.78
11.8026 Headliner Bracket $13.68
90.6091 Repl. Suction Cup with nut $ 1.56
Instructions
11.8000 Dash Light - Standard Patterns View PDF
11.8000SF Dash Light - Strobe Patterns View PDF
