SHO-ME Lights and Sirens

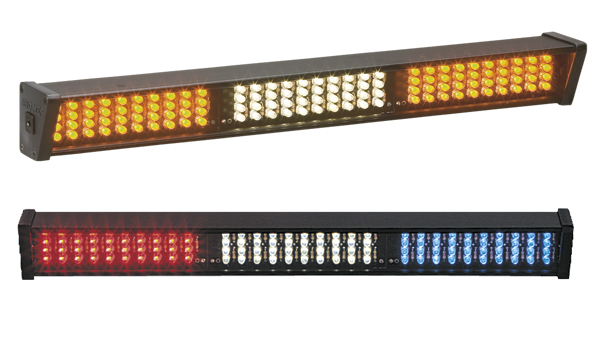

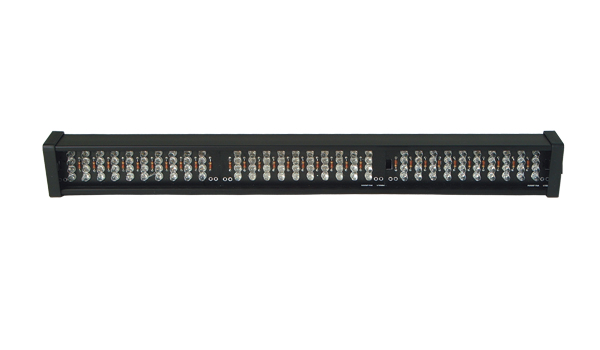

LED Triple Light Stick

Model 11.2715

  • 120 high-intensity LEDs in your choice of amber, blue, green, red or white.
  • Solid-state internal flasher.
  • Standard housing-mounted push button power & mode switches control seven flash patterns. Also available with an optional housing-mounted rotary pattern selector with up to 15 flash patterns (for an additional charge).
  • Clear lens cover protects LEDs from dust and debris.
  • Black anodized aluminum housing.
  • Includes one (your choice) of these mounting brackets: L brackets, windshield brackets, headliner bracket or dash bracket.
  • Optional waterproofing (for an additional charge) permits installation in wet locations.
  • Back cable exit.
Specifications
Voltage: 12 volt
Amperage: 1.5 amps max
Dimensions: 1-15/16" H x 15-3/4" W x 1-15/16" D
Weight: 1 lb. 2 oz.
Wiring: 10’ power cord with adapter plug
LED Triple Light Stick
Suggested retail price
11.2715.000 Amber or Red $348.54
11.2715.000 Blue or White $468.34
11.2715.000 Red / Blue / Red $388.48
11.2715.000 Red / White / Blue $428.42
  For waterproofing add: $15.00
  For rotary pattern selector add: $38.40

LED Triple Light Stick
Additional Views:   1     2     3     4      5     6
Flash Patterns
Option 1: Standard Flash Patterns
1. Alternating Quad Flash - ends / center
2. Simultaneous Quad Flash
3. Sequential Quad Flash
4. Alternating Double Flash - ends / center 200 FPM
5. Sequential - 800 FPM
6. Alternating Double Flash - ends / center
7. Automatic Random Select
Option 2: Rotary Selector Flash Patterns
1. Sequential Quad Flash
2. Alternating Ends / Center 120 FPM
3. Scan
4. Alternating Double Flash - ends / center
5. Alternating Quad Flash - ends / center
6. Simultaneous Single Flash - 90 FPM
7. Center Only - 90 FPM
8. Wig Wag Ends - 90 FPM
9. Simultaneous Quad Flash
10. Inverted Scan
11. Wig Wag & Steady Burn
12. Simultaneous Double Flash
13. Quad Flash / Single Flash
14. Random Fast
15. Random All
Parts and Accessories
Suggested Retail Price
11.2010 Dash Bracket $12.78
11.2026 Headliner Bracket $13.68
11.4472 L Brackets - (pair) $ 6.64
11.4474 Windshield L Brackets - (pair) $ 8.78
Instructions
11.2715 LED Triple Light Stick View PDF
11.2715.ROT Triple Stick w/ rotary switch View PDF
